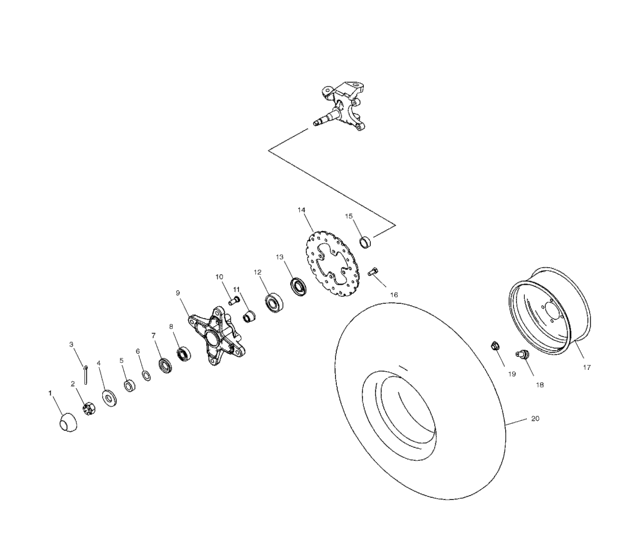

Front hub and front wheel (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
2
|
2
7542712 Nut |
7542712 |
US $11.36 |
||
|
3
|
3
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
4
|
4
7555721 Washer(10) |
7555721 |
US $5.25 |
||
|
5
|
5
5133342 Spacer-spindle,outer |
5133342 |
US $7.89 |
||
|
6
|
6
7555919 WasherIf built before 4/14/03; |
7555919 |
US $6.21 |
||
|
7
|
7
3610090 Seal-lip,.875x1.503x.25 (10) |
3610090 |
US $5.64 |
||
|
8
|
8
3514395
Bearing, ball, sealed
|
3514395 |
— | ||
|
9
|
9
5133294-293
Hub, wheel, front, indy red
|
5133294-293 |
— | ||
|
9
|
9
7515523 StudIf built before 2/17/03; |
7515523 |
US $4.73 |
||
|
10
|
10
7515513 Stud(10) *If built after 2/17/03; |
7515513 |
US $19.60 |
||
|
11
|
11
5133343
Spacer, tapered
|
5133343 |
— | ||
|
12
|
12
3513519
Bearing, ball
|
3513519 |
— | ||
|
13
|
13
3610093 Seal-lip,1.00x1.88x.25 |
3610093 |
US $8.17 |
||
|
14
|
14
5246039
Disc, brake
|
5246039 |
— | ||
|
15
|
15
5133341 Spacer-spindle,inner |
5133341 |
US $17.31 |
||
|
16
|
16
7512325 Bolt |
7512325 |
US $5.25 |
||
|
17
|
17
1520608
Rim, front
|
1520608 |
— | ||
|
18
|
18
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
19
|
19
7542459 Nut, flanged(10) |
7542459 |
US $65.60 |
||
|
20
|
20
5412158 Tire-front,21x7-10,mxs__140 |
5412158 |
US $76.79 |
