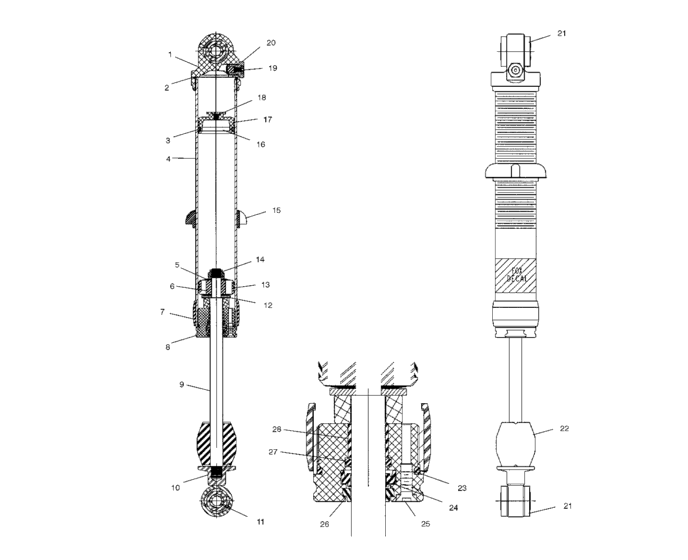

Front shock (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1500288
Body,cap-1,46x7/16 804-00-004
|
1500288 |
— | ||
|
2
|
2
1500108 O-ring,,103w-1,549id |
1500108 |
US $7.91 |
||
|
3
|
3
1500180
O-ring-high temp,ifp
|
1500180 |
— | ||
|
4
|
4
1500498 Body,1,5x9,936tlg |
1500498 |
US $65.99 |
||
|
5
|
5
1500015 Plate,backup |
1500015 |
US $5.29 |
||
|
6
|
6
1500495 Piston,,082 bleed |
1500495 |
US $29.54 |
||
|
7
|
7
1500492 Guide,spring |
1500492 |
US $16.24 |
||
|
8
|
8
1500285
Bearing-1,46x1,15 812-02-002
|
1500285 |
— | ||
|
9
|
9
1500493 Shaft,8,325 tlg |
1500493 |
US $43.33 |
||
|
10
|
10
1500013 Eyelet |
1500013 |
US $79.31 |
||
|
11
|
11
1500497 Sleeve,,57x,81x1,15 |
1500497 |
US $35.12 |
||
|
12
|
12
1500017 Plate,top out |
1500017 |
US $11.24 |
||
|
13
|
13
1500002 Damper, piston ring |
1500002 |
US $34.49 |
||
|
14
|
14
1500016 Nut,lock |
1500016 |
US $13.09 |
||
|
15
|
15
1500494
Ring, preload, nylon
|
1500494 |
— | ||
|
16
|
16
1500275 Floating piston asm 805-00-011Incl. 3; |
1500275 |
US $128.21 |
||
|
16
|
16
1500011 Piston |
1500011 |
US $65.99 |
||
|
17
|
17
1500006 Ring,piston,floating, |
1500006 |
US $21.67 |
||
|
18
|
18
1500161 Screw/o-ring asm, |
1500161 |
US $12.39 |
||
|
18
|
18
1500022 O-ring,drum outer |
1500022 |
US $3.06 |
||
|
19
|
19
1500019 Screw |
1500019 |
US $5.22 |
||
|
20
|
20
1500014 Valve asm,air |
1500014 |
US $33.50 |
||
|
21
|
21
1500103 Bsg-eyelet |
1500103 |
US $10.03 |
||
|
22
|
22
1500491
Bumper, bottom/out
|
1500491 |
— | ||
|
23
|
23
1500020 O-ring,,103w-1,299id |
1500020 |
US $7.32 |
||
|
24
|
24
1500266 U-cup-4300 ureth,036-01-006 |
1500266 |
US $30.10 |
||
|
25
|
25
1500287
Screw-#8-32x,375 800-10-002
|
1500287 |
— | ||
|
25
|
25
1500022 O-ring,drum outer |
1500022 |
US $3.06 |
||
|
26
|
26
1500268
Wiper
|
1500268 |
— | ||
|
27
|
27
1500496 O-ring |
1500496 |
US $3.27 |
||
|
28
|
28
1500488
Bearing-,5 idx,5 tlg
|
1500488 |
— |
