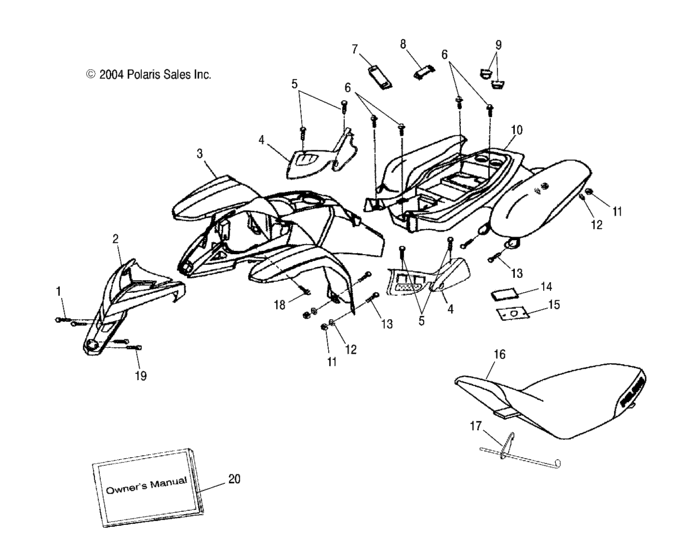

Cab/seat (A05KA09CA/CB) Diagram Polaris PREDATOR 90
- Model code
- A05KA09CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451132
Screw, tapping
|
0451132 |
— | ||
|
2
|
2
0451124
Cover-front
|
0451124 |
— | ||
|
3
|
3
0452191-496 Cab-front,cosmic sunburstCA; |
0452191-496 |
US $349.62 |
||
|
3
|
3
0452191-293
Cab-front,indy red
CB; |
0452191-293 |
— | ||
|
4
|
4
0451122
Panel, side, rh
|
0451122 |
— | ||
|
4
|
4
0451123
Panel, side, lh
|
0451123 |
— | ||
|
5
|
5
0450676 Screw-tapping(10) * |
0450676 |
US $2.45 |
||
|
6
|
6
0450340
Bolt
|
0450340 |
— | ||
|
7
|
7
0451140 Strap-battery |
0451140 |
US $5.11 |
||
|
8
|
8
0451141 Strap-battery/tool box |
0451141 |
US $4.34 |
||
|
9
|
9
0450290 Rubber,seat 77220-131-000 |
0450290 |
US $6.11 |
||
|
10
|
10
0452192-496 Cab-rear,predator,cosmic sunCA; |
0452192-496 |
US $349.62 |
||
|
10
|
10
0452192-293 Cab-rear,indy redCB; |
0452192-293 |
US $349.62 |
||
|
11
|
11
0450741 Nut,lock(10) * |
0450741 |
US $3.94 |
||
|
12
|
12
0450710 Washer-plain(10) * |
0450710 |
US $1.89 |
||
|
13
|
13
0450622 Bolt-phillips(10)* |
0450622 |
US $3.75 |
||
|
14
|
14
0450346 Foam,battery pad |
0450346 |
US $0.79 |
||
|
15
|
15
0450345 Pad,foil,protector |
0450345 |
US $25.43 |
||
|
16
|
16
0452193 Seat-asmCA; |
0452193 |
US $227.45 |
||
|
16
|
16
0452213
Asm-seat,dale jr,
CB; |
0452213 |
— | ||
|
17
|
17
0453022
Latch-seat,predator
CA; |
0453022 |
— | ||
|
18
|
18
0450824 Bolt-w/wshr,hex(10) |
0450824 |
US $2.45 |
||
|
19
|
19
0451674 Screw,tapping |
0451674 |
US $1.89 |
||
|
20
|
20
9919505 Man-own,05 sptmn 90 pred 50/90 |
9919505 |
US $45.68 |
