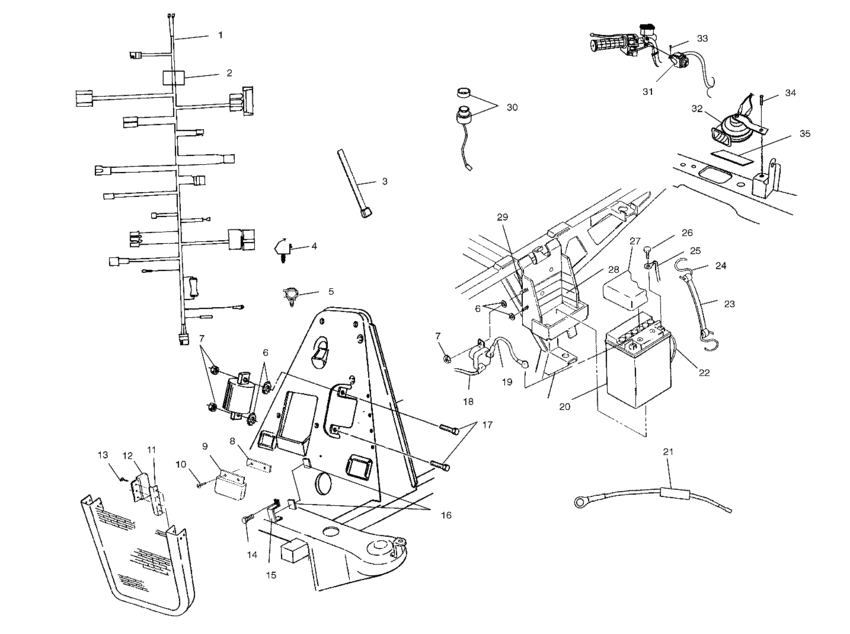

Electrical (C10CL50AA) Diagram Polaris PTV 6X6
- Model code
- C10CL50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2461029
Harness-main,6x6,professional
|
2461029 |
— | ||
|
2
|
2
2201795 Kit-circut breaker,fan |
2201795 |
US $47.67 |
||
|
3
|
3
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
4
|
4
7670109 Clip-routing |
7670109 |
US $3.75 |
||
|
5
|
5
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
6
|
6
7571602 Washer |
7571602 |
US $2.45 |
||
|
7
|
7
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
8
|
8
5210650
Heat sink
|
5210650 |
— | ||
|
9
|
9
4010639
Module-rpm limiter,hub control
|
4010639 |
— | ||
|
10
|
10
7511989
Screw
|
7511989 |
— | ||
|
11
|
11
5131036
Heatsink rect,
|
5131036 |
— | ||
|
12
|
12
4010670
Rectifier, regulator
|
4010670 |
— | ||
|
13
|
13
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
14
|
14
7512024 Screw |
7512024 |
US $2.45 |
||
|
15
|
15
5246378 Brkt-cdi,digital |
5246378 |
US $6.11 |
||
|
16
|
16
5810455 Pad |
5810455 |
US $1.66 |
||
|
17
|
17
7512007 Bolt |
7512007 |
US $2.45 |
||
|
18
|
18
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
19
|
19
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
20
|
20
4140006 Battery |
4140006 |
US $275.60 |
||
|
21
|
21
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
22
|
22
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
23
|
23
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
24
|
24
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
25
|
25
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
26
|
26
2200361 Kit-battery bolt (short) |
2200361 |
US $1.77 |
||
|
27
|
27
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
28
|
28
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
29
|
29
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
30
|
30
4040028
Alarm, reverse warning
|
4040028 |
— | ||
|
31
|
31
4010311 Switch,button |
4010311 |
US $49.25 |
||
|
32
|
32
4010310
Horn
|
4010310 |
— | ||
|
33
|
33
7512057
Screw
|
7512057 |
— | ||
|
34
|
34
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
35
|
35
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
35
|
35
8360026
Pad,bulk fuel
|
8360026 |
— | ||
