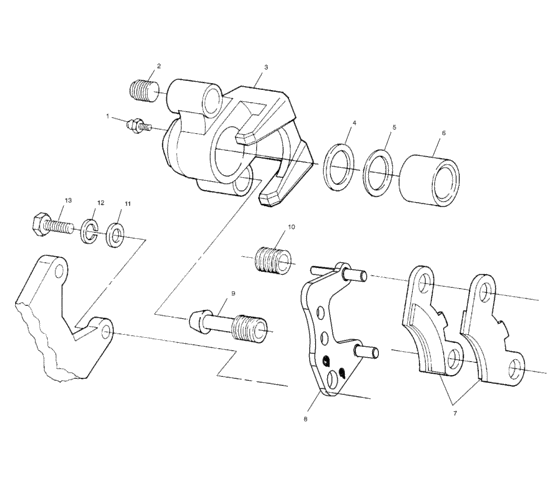

Front brake (C10CL50AA) Diagram Polaris PTV 6X6
- Model code
- C10CL50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
2
|
2
7515489 Scr-3/8-24x5/16 soc set-y |
7515489 |
US $3.75 |
||
|
3
|
3
5132963
Caliper, brake, lh
|
5132963 |
— | ||
|
3
|
3
5132964
Caliper, brake, rh
|
5132964 |
— | ||
|
3
|
3
1930642 Kit,boot,front brake |
1930642 |
US $11.81 |
||
|
4
|
4
5411596 Seal-caliper,inner,1,25" |
5411596 |
US $4.73 |
||
|
5
|
5
5411597 Seal-caliper,outer,1,25" |
5411597 |
US $7.89 |
||
|
6
|
6
5132405 Piston-caliper,1,25 |
5132405 |
US $23.64 |
||
|
7
|
7
2201398
Kit, front brake pad
|
2201398 |
— | ||
|
8
|
8
1910411
Asm., mount, caliper
|
1910411 |
— | ||
|
9
|
9
5410495
Boot, bushing
|
5410495 |
— | ||
|
10
|
10
5410494
Boot, pin seal
|
5410494 |
— |
