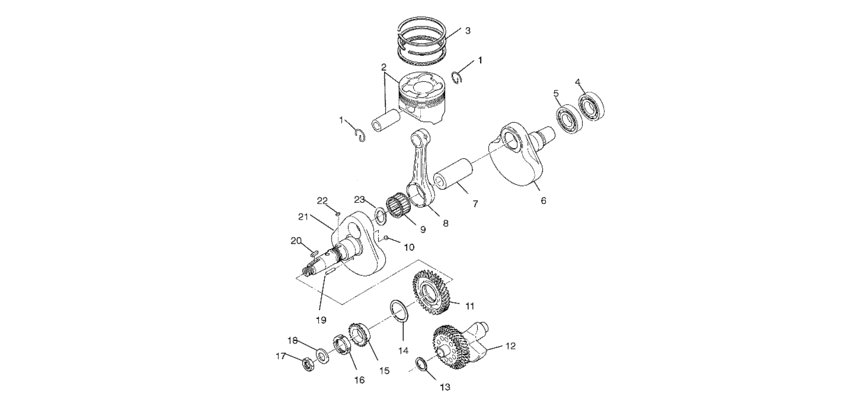

Crankshaft and piston (A11RB42AA/A11RD50AA/AB/A11RF50AA) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085534 Clip(2) |
3085534 |
from US $3.20 |
||
|
2
|
2
3086207
Set, piston standard
Std;Incl. 1;2x4; If built before 8/09/02; |
3086207 |
— | ||
|
2
|
2
3087230
Set,piston,standard
Std;Incl. 1;2x4; If built after 8/09/02; |
3087230 |
— | ||
|
2
|
2
3086208
Piston set
0.25 O/S;Incl. 1;2x4; If built before 8/09/02; |
3086208 |
— | ||
|
2
|
2
3087231
Set,piston,,010"/,25mm o/s
0.25 O/S;Incl. 1;2x4; If built after 8/09/02; |
3087231 |
— | ||
|
2
|
2
3086209
Piston set
0.50 O/S;Incl. 1;2x4; If built before 8/09/02; |
3086209 |
— | ||
|
2
|
2
3087232 Set,piston,,020"/,50mm o/s0.50 O/S;Incl. 1;2x4; If built after 8/09/02; |
3087232 |
US $218.91 |
||
|
2
|
2
3087221 Set,piston,standardStd;Incl. 1;4x4)(6x6; |
3087221 |
US $230.42 |
||
|
2
|
2
3087222 Set,piston,,010"/,25mm o/s0.25 O/S;Incl. 1;4x4)(6x6; |
3087222 |
US $217.61 |
||
|
2
|
2
3087223 Set,piston,,020"/,50mm o/s0.50 O/S;Incl. 1;4x4)(6x6; |
3087223 |
US $232.98 |
||
|
3
|
3
3086488
Ring set, piston
Std;2x4; If built before 8/09/02; |
3086488 |
— | ||
|
3
|
3
3087233 Set,piston,ring standardStd;2x4; If built after 8/09/02; |
3087233 |
from US $94.48 |
||
|
3
|
3
3086489
Ring set, piston
0.25 O/S;2x4; If built before 8/09/02; |
3086489 |
— | ||
|
3
|
3
3087234 Set,piston,ring ,010"/,25mm o/s0.25 O/S;2x4; If built after 8/09/02; |
3087234 |
US $86.26 |
||
|
3
|
3
3086490
Ring set, piston
0.50 O/S;2x4; If built before 8/09/02; |
3086490 |
— | ||
|
3
|
3
3087235 Set,piston,ring,,020"/,50mm o/s0.50 O/S;2x4; If built after 8/09/02; |
3087235 |
US $86.26 |
||
|
3
|
3
3087224 Set,piston,ring,standard *Std;4x4)(6x6; |
3087224 |
US $88.57 |
||
|
3
|
3
3087225 Set,piston,ring,,010"/,25mm o/s0.25 O/S;4x4)(6x6; |
3087225 |
US $86.26 |
||
|
3
|
3
3087226 Set,piston,ring,,020"/,50mm o/s0.50 O/S;4x4)(6x6; |
3087226 |
US $86.26 |
||
|
4
|
4
3080676 Bearing, ball4x4)(6x6; |
3080676 |
US $51.17 |
||
|
5
|
5
3085815 Bearing,ball4x4)(6x6; |
3085815 |
US $54.15 |
||
|
6
|
6
3085340 Crankshaft #22x4; If built before 8/09/02; |
3085340 |
US $171.52 |
||
|
6
|
6
3087229 Crankshaft 22x4; If built between 8/09/02 and 1/03; |
3087229 |
US $448.09 |
||
|
6
|
6
3088719 Crankshaft-22x4; If built after 1/03; |
3088719 |
US $507.19 |
||
|
6
|
6
3085812 Crankshaft,#24x4)(6x6; |
3085812 |
US $630.26 |
||
|
7
|
7
3085341
Pin, crank
|
3085341 |
— | ||
|
8
|
8
3086206
Rod,connecting
2x4; |
3086206 |
— | ||
|
8
|
8
3085376 Rod,connecting4x4)(6x6; |
3085376 |
US $172.34 |
||
|
9
|
9
3085400 Bearing,large end |
3085400 |
US $97.44 |
||
| replacement | |||||
|
9
|
9
3085343
Bearing, end, large
|
3085343 |
— | ||
|
10
|
10
3085024 Ball, steel |
3085024 |
US $7.91 |
||
|
11
|
11
3085852
Gear,balancer #1 *
|
3085852 |
— | ||
|
12
|
12
3085404 Shaft,balancer * |
3085404 |
US $285.60 |
||
|
13
|
13
3084895 Spacer,0,80.8; |
3084895 |
US $4.94 |
||
|
13
|
13
3084896 Spacer,1,01.0; |
3084896 |
US $4.94 |
||
|
13
|
13
3084897 Spacer,1,21.2; |
3084897 |
US $4.94 |
||
|
14
|
14
3240088 Spacer,0,60.6; |
3240088 |
US $9.91 |
||
|
14
|
14
3084892 Spacer,0,80.8; |
3084892 |
US $11.25 |
||
|
14
|
14
3084893 Spacer,1,01.0; |
3084893 |
US $16.24 |
||
|
14
|
14
3084894 Spacer,1,21.2; |
3084894 |
US $16.24 |
||
|
15
|
15
3084882
Sprocket 1
|
3084882 |
— | ||
|
16
|
16
3085528 Nut,slit |
3085528 |
US $28.07 |
||
|
17
|
17
3083905
Nut,lock
|
3083905 |
— | ||
|
18
|
18
3086767
Washer
|
3086767 |
— | ||
| replacement | |||||
|
18
|
18
3083904
Washer
|
3083904 |
— | ||
|
19
|
19
3085346
Pin, dowel
|
3085346 |
— | ||
|
20
|
20
3081447 Key |
3081447 |
US $28.80 |
||
|
21
|
21
3085373
Crankshaft#1,mag side
4x4)(6x6; |
3085373 |
— | ||
|
21
|
21
3084881
Crankshaft
Incl. 6-11,19;2x4; If built before 8/09/02; |
3084881 |
— | ||
|
21
|
21
3087228
Asm., crankshaft
Incl. 6-11,19;2x4; If built after 8/09/02; |
3087228 |
— | ||
|
21
|
21
3085339 Crankshaft #1If built before 1/03 in 2x4; |
3085339 |
US $202.86 |
||
|
21
|
21
3088817
Crankshaft 1
If built after 1/03 in 2x4; |
3088817 |
— | ||
|
21
|
21
3087227
Asm., crankshaft
Incl. 6-11,19;4x4)(6x6; |
3087227 |
— | ||
|
22
|
22
3080130
Key, woodruff
|
3080130 |
— | ||
| replacement | |||||
|
22
|
22
3081543 Key woodruff |
3081543 |
US $9.15 |
||
|
23
|
23
3085344 Spacer,crank pinIf built before 1/03;2x4; |
3085344 |
US $12.11 |
||
