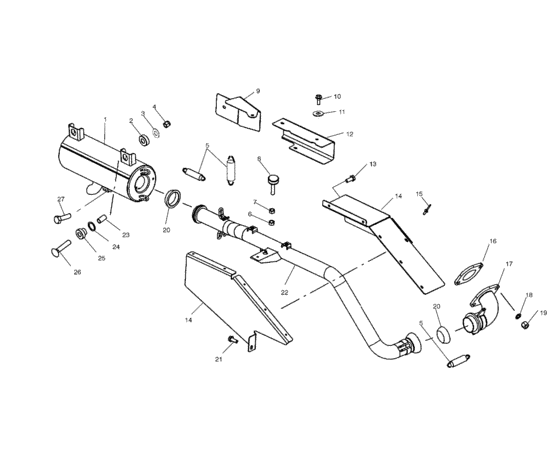

Exhaust system (A11RB42AA/A11RD50AA/AB/A11RF50AA) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1261082-029
Silencer,blk
|
1261082-029 |
— | ||
|
2
|
2
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
3
|
3
7555716 Washer |
7555716 |
US $2.45 |
||
|
4
|
4
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
5
|
5
7041804 Spring |
7041804 |
US $9.85 |
||
|
6
|
6
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
7
|
7
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
8
|
8
3110064
Mount, torque stop
|
3110064 |
— | ||
|
9
|
9
5246454 Shield-heat,exhaust,side |
5246454 |
US $13.20 |
||
|
10
|
10
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
11
|
11
7555935 Washer |
7555935 |
US $3.26 |
||
|
12
|
12
5246455 Shield-heat,exhaust,top |
5246455 |
US $13.20 |
||
|
13
|
13
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
14
|
14
2632609
Asm. shield exhaust
|
2632609 |
— | ||
|
14
|
14
5245644
Shield, lh
|
5245644 |
— | ||
|
14
|
14
5246388
Shield, rh
|
5246388 |
— | ||
|
15
|
15
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
16
|
16
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
17
|
17
1261043-029
Manifold, black
|
1261043-029 |
— | ||
|
18
|
18
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
19
|
19
3080285
Nut
|
3080285 |
— | ||
|
20
|
20
5243518 Seal,exhaust |
5243518 |
US $35.12 |
||
|
21
|
21
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
22
|
22
1261230-029
Weld-exhaust pipe,ranger,blk
|
1261230-029 |
— | ||
|
23
|
23
5010192 Bushing |
5010192 |
US $4.94 |
||
|
24
|
24
7555863 Washer |
7555863 |
US $3.75 |
||
|
25
|
25
5410241
Dampener, vibration
|
5410241 |
— | ||
|
26
|
26
7515316 Bolt |
7515316 |
US $2.98 |
||
|
27
|
27
7512666 Bolt |
7512666 |
US $3.75 |
