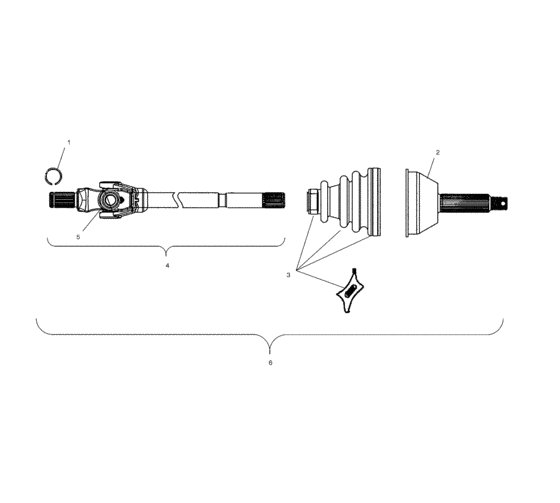

Front drive shaft (A11RD50AA/AB/A11RF50AA; 4X4; 6X6) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670092 Circlip,driveshaft,neapco |
7670092 |
US $8.02 |
||
|
2
|
2
1590327
Joint-cv,serv,neapco
|
1590327 |
— | ||
|
3
|
3
2201015 Kit,cv-boot,frontIncl. Clamps and Grease; |
2201015 |
US $53.17 |
||
|
4
|
4
1380187 Shaft-drive,serv,neapcoIncl. 5; Use w/1380178; |
1380187 |
US $196.95 |
||
|
4
|
4
1380231 Shaft-drive,serv,neapcoIncl. 5; Use w/1380230; |
1380231 |
US $172.81 |
||
|
5
|
5
3260104 Kit,cross&bearingUse w/1380178; |
3260104 |
US $35.46 |
||
|
5
|
5
2202015 Kit,cross & bearing,nongreaseUse w/1380230; |
2202015 |
US $88.57 |
||
|
6
|
6
1380178
Asm., drive shaft
If built before 5/06/03; |
1380178 |
— | ||
|
6
|
6
1380230 Asm-driveshaft,front,ch,lflIf built after 5/06/03; |
1380230 |
US $320.04 |
