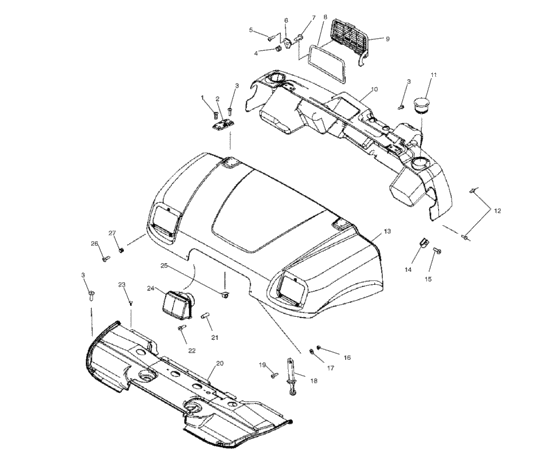

Hood (A11RB42AA/A11RD50AA/AB/A11RF50AA) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
2
|
2
5437902 Asm-hinge |
5437902 |
US $7.09 |
||
|
3
|
3
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
4
|
4
5410774
Grommet, rubber
|
5410774 |
— | ||
|
5
|
5
7512026
Screw
|
7512026 |
— | ||
|
6
|
6
5910119 Plate-catch |
5910119 |
US $3.64 |
||
|
7
|
7
5246693 Pin-catch |
5246693 |
US $7.68 |
||
|
8
|
8
5521623
Seal-glove box
If built before 4/07/03; |
5521623 |
— | ||
|
8
|
8
5521667 Seal-gloveboxIf built after 4/07/03; |
5521667 |
US $15.75 |
||
|
9
|
9
5434719-195 Cover-glovebox,eb greenAA; |
5434719-195 |
US $56.14 |
||
|
9
|
9
5435116-455
Cover-glvbx,ranger,nbu,sub,
AB; |
5435116-455 |
— | ||
|
10
|
10
5434657-195
Dash
If built before 1/01/03;AA; |
5434657-195 |
— | ||
|
10
|
10
5435109-195
Dash
If built after 1/01/03;AA; |
5435109-195 |
— | ||
|
10
|
10
5435117-455
Dash-ranger,new break up,sub,
AB; |
5435117-455 |
— | ||
|
11
|
11
5434763 Holder-cup |
5434763 |
US $3.64 |
||
|
12
|
12
7621479 Rivet(50) |
7621479 |
US $2.45 |
||
|
13
|
13
5434658-195
Hood-ranger,eb green
AA; |
5434658-195 |
— | ||
|
13
|
13
5435118-455
Hood-ranger,new break up,sub,
AB; |
5435118-455 |
— | ||
|
14
|
14
7670157 Nut-#10,u-type,ab(,025,150)If built after 1/01/03; |
7670157 |
US $1.49 |
||
|
15
|
15
7517561 ScrewIf built after 1/01/03; |
7517561 |
US $5.25 |
||
|
16
|
16
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
17
|
17
7555935 Washer |
7555935 |
US $3.26 |
||
|
18
|
18
5410370 Strap, hood latch |
5410370 |
US $18.32 |
||
|
19
|
19
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
20
|
20
5434746
Liner, hood
|
5434746 |
— | ||
|
21
|
21
4032094 Spring,adj,(2,5 in) |
4032094 |
US $1.28 |
||
|
22
|
22
7518156 Scr-m5x,8x85mm |
7518156 |
US $3.75 |
||
|
23
|
23
7670090 Clip,plastic dart,nylon(10) |
7670090 |
US $39.40 |
||
|
24
|
24
2410275
Headlight asm,rngr,series 10/11
|
2410275 |
— | ||
|
24
|
24
4010681
Bulb, headlight
|
4010681 |
— | ||
|
25
|
25
7670134 Clip-wire,adhesive back,1/2" |
7670134 |
US $7.68 |
||
|
26
|
26
7518157 Scr-m5x,8x50mm |
7518157 |
US $3.26 |
||
|
27
|
27
5412148 Grommet-3/16x9/16x3/8 |
5412148 |
US $3.26 |
