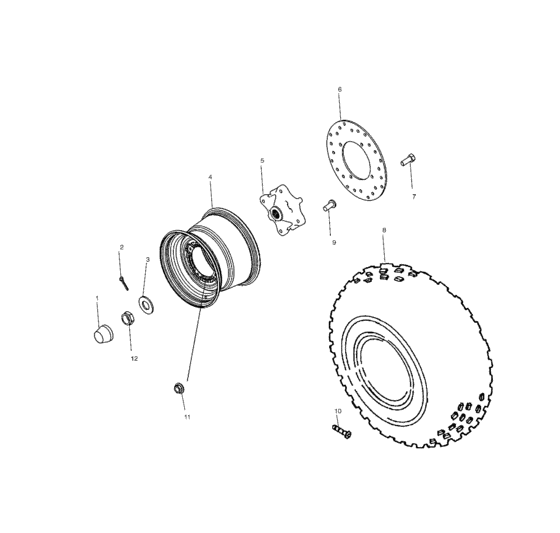

Rear wheel drive (A11RB42AA/A11RD50AA/AB/A11RF50AA) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411164
Cover, dust, hub
Use Qty 4 for 6x6; |
5411164 |
— | ||
|
2
|
2
7661404 Pin, cotterUse Qty 4 for 6x6; |
7661404 |
US $5.25 |
||
|
3
|
3
7555796 Washer, coneUse Qty 6 for 6x6; |
7555796 |
US $9.10 |
||
|
4
|
4
1520483-067
Rim, rear, black
Use Qty 4 for 6x6; AA; |
1520483-067 |
— | ||
|
4
|
4
1520695-455
Rim, rear, break-up
AB; |
1520695-455 |
— | ||
|
5
|
5
5133361
Hub, rear wheel
Use Qty 4 for 6x6; |
5133361 |
— | ||
|
6
|
6
5244635 Disc,brake,rear,8,625x,158Use Qty 4 for 6x6; |
5244635 |
US $73.87 |
||
|
7
|
7
7512325 BoltUse Qty 16 for 6x6; |
7512325 |
US $5.25 |
||
|
8
|
8
5412008 Tire-rear, 25x11-12,489Use Qty 4 for 6x6; AA; |
5412008 |
US $277.78 |
||
|
8
|
8
5412301
Tire-25x11-12,gy,nhs
AB; |
5412301 |
— | ||
|
9
|
9
7515513 Stud(10) *Use Qty 16 for 6x6; |
7515513 |
US $19.60 |
||
|
10
|
10
1525017 Valve, rimUse Qty 4 for 6x6; |
1525017 |
US $6.56 |
||
|
11
|
11
7542459 Nut, flanged(10)Use Qty 16 for 6x6; |
7542459 |
US $65.60 |
||
|
12
|
12
7543005 Nut, castleUse Qty 4 for 6x6; |
7543005 |
US $9.84 |
