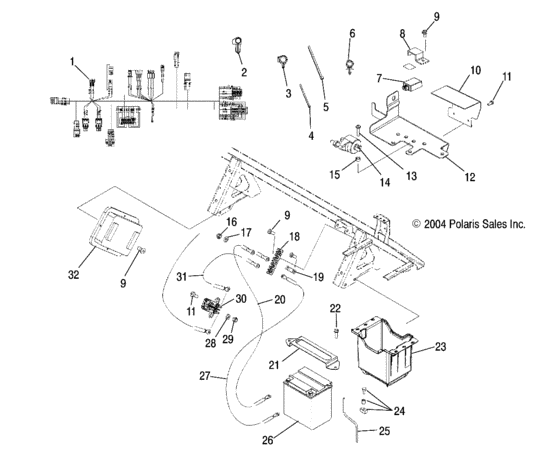

Electrical/battery (R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410523
Harness-chassis
2x4;4x4;Incl. All Kits; |
2410523 |
— | ||
|
1
|
1
2410524
Harness-chassis,6x6
6x6;Incl. All Kits; |
2410524 |
— | ||
|
1
|
1
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
2
|
2
7670102 Clip |
7670102 |
US $5.25 |
||
|
3
|
3
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
4
|
4
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
5
|
5
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
6
|
6
7670116 Clip,routing,,472 b,d,,hinged2x4; |
7670116 |
US $3.94 |
||
|
6
|
6
4010589 Clip-plastic,dart nylon4x4; |
4010589 |
US $2.98 |
||
|
7
|
7
3089238 Cdi system |
3089238 |
US $427.70 |
||
|
8
|
8
5246747 Brkt-cdi,digital,long |
5246747 |
US $4.94 |
||
|
9
|
9
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
10
|
10
5245617
Brkt-elect cover
|
5245617 |
— | ||
|
11
|
11
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
13
|
13
7512025 Screw |
7512025 |
US $3.26 |
||
|
14
|
14
3085227
Coil,ignition *
|
3085227 |
— | ||
|
15
|
15
7556318 Spacer-,26x,50x,31 |
7556318 |
US $1 |
||
|
16
|
16
3280321 Hex nut-nt0001 |
3280321 |
US $2.28 |
||
|
17
|
17
7552615 Washer, lock |
7552615 |
US $2.45 |
||
|
18
|
18
4011130
Block-terminal,3 post
|
4011130 |
— | ||
|
19
|
19
5248659 Strap-ground |
5248659 |
US $1.28 |
||
|
20
|
20
4010926 Cable-ground,10" |
4010926 |
US $16.24 |
||
|
21
|
21
5248374 Brkt-battery strap |
5248374 |
US $19.29 |
||
|
22
|
22
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
23
|
23
5434037 Box-battery |
5434037 |
US $35.12 |
||
|
24
|
24
2202172
Kit,battery bolt,30ah
|
2202172 |
— | ||
|
25
|
25
5435030 Tube, battery vent |
5435030 |
US $2.28 |
||
|
26
|
26
4010630 Battery-30 amp,top mount |
4010630 |
US $151.64 |
||
|
27
|
27
4011144 Cable-batt,/terminal block,16" |
4011144 |
US $19.30 |
||
|
28
|
28
7547283
Nut-1/4-20 hx jam-y
|
7547283 |
— | ||
|
29
|
29
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
30
|
30
4011072
Switch, magnetic
|
4011072 |
— | ||
|
31
|
31
4010541 Cable-13",red |
4010541 |
US $36.80 |
||
|
32
|
32
4011089 Module-500 ecm |
4011089 |
US $478.59 |
