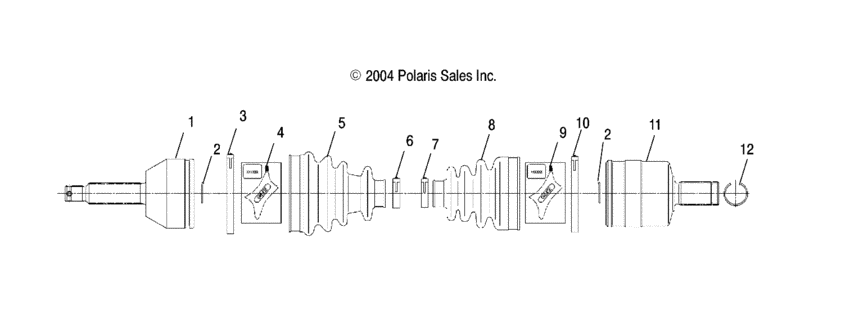

Front drive shaft (R05RD50AA/AB/AC/AD; 4X4) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1350063 Cv-joint |
1350063 |
US $265.90 |
||
|
2
|
2
1332434
Ring-retaining, shaft
|
1332434 |
— | ||
|
3
|
3
1350062 Clamp-large 76,5 mm |
1350062 |
US $6.69 |
||
|
4
|
4
1350046
Grease,30g btb
|
1350046 |
— | ||
|
5
|
5
5411106 Boot, cv joint |
5411106 |
US $57.42 |
||
|
6
|
6
1350061 Clamp-small 25,0 mm |
1350061 |
US $6.69 |
||
|
7
|
7
7710579 Clamp-small |
7710579 |
US $5.43 |
||
|
8
|
8
1332364
Boot, gear side
|
1332364 |
— | ||
|
9
|
9
1350047 Grease-50g btb |
1350047 |
US $15.26 |
||
|
10
|
10
7710580 Clamp-large |
7710580 |
US $5.43 |
||
|
11
|
11
1590413 Joint-plunging,serv,gknIncl. 12; |
1590413 |
US $295.44 |
||
|
12
|
12
1350085
Ring
|
1350085 |
— |
