Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3234163 Screw-set	3234163	US $20.69
2	2 3234159 Asm-cover plate Incl. Output Cover, Insert and Coil;	3234159	US $549.48
3	3 3234164 Button-thrust	3234164	US $8.17
4	4 3234165 Plate-thrust	3234165	US $15.26
5	5 3234161 Plate-armature,shim	3234161	US $21.67
6	6 3233926 Bearing-roller ball	3233926	US $64.02
7	7 3233953 Asm-race/output hub Incl. 27;	3233953	US $389.01
8	8 3233928 Pin-dowel,1/2"dia x 1"	3233928	US $16.24
9	9 3234166 Clutch housing/ring gear	3234166	—
10	10 3234167 Asm., roll cage Incl. Spring and Roll Cage;	3234167	—
10	10 3233935 Spring	3233935	—
11	11 3233957 Kit-roller	3233957	US $127.05
12	12 3233934 Ring-retaining,wire form	3233934	US $35.88
14	14 8450003-1525 Line,fuel,1/4 id(1525 cm,)	8450003-1525	US $85.45
15	15 4020139 Clip,rosebud 6x6;	4020139	US $3.26
16	16 7080307 Clamp,hose(10)	7080307	US $0.79
17	17 3233956 Kit-seal,gearcase-front Incl. O-Rings and Seals;	3233956	US $64.02
18	18 3233955 Kit-bolt	3233955	US $26.09
19	19 3233947 Cover-input,mach	3233947	—
20	20 3234112 Bearing-deep grove roller ball	3234112	US $64.02
21	21 3233944 Shaft-pinion,11t,6,75dp,mach	3233944	—
24	24 3233942 Plug-oil fill 3/4-16 hollow	3233942	US $24.43
25	25 7518364 Bolt-3/8-16x7/8 hex flange gr5	7518364	US $1.49
26	26 3233951 Asm-drain plug Incl. Plug and Washer;	3233951	—
27	27 3233929 Bearing-needle roller thrust	3233929	US $16.75
28	28 3234162 Ring-retaining,internal	3234162	US $20.69
29	29 3234160 Plate armature	3234160	—

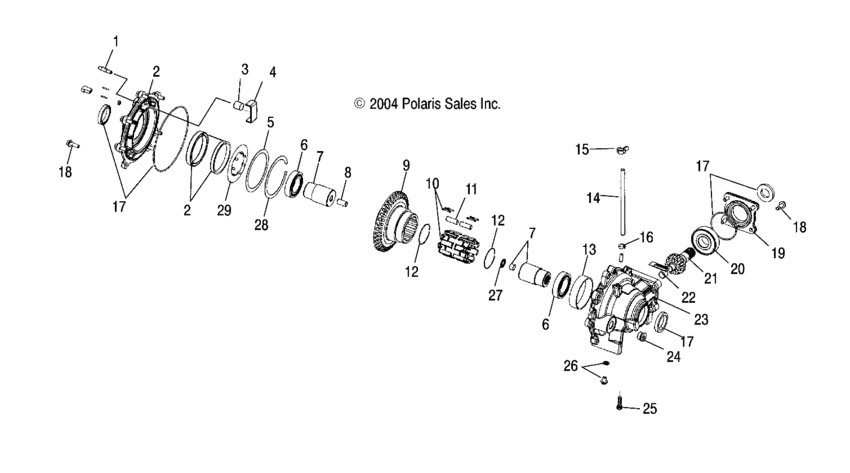

Front housing (R05RD50AA/AB/AC/AD/RF50AA/AB; 4X4; 6X6) Diagram Polaris RANGER 500 2X4,4X4,6X6 General 1534392-150948
