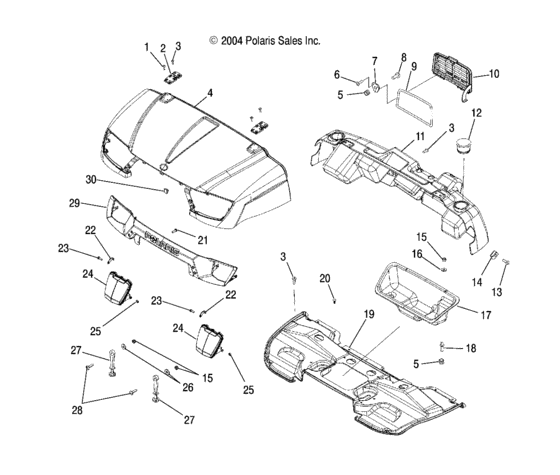

Hood (R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
2
|
2
5437902 Asm-hinge |
5437902 |
US $7.09 |
||
|
3
|
3
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
4
|
4
5435703-195 Hood-greenAA; |
5435703-195 |
US $1,164.98 |
||
|
4
|
4
5436255-455
Hood, nbu
4x4AB; |
5436255-455 |
— | ||
|
4
|
4
5435703-515 Hood-crimson red4x4AC; |
5435703-515 |
US $1,096.04 |
||
|
4
|
4
5435703-342 Hood-solar red4x4AD;6x6AB; |
5435703-342 |
US $1,164.98 |
||
|
5
|
5
5410774
Grommet, rubber
|
5410774 |
— | ||
|
6
|
6
7512026
Screw
|
7512026 |
— | ||
|
7
|
7
5910119 Plate-catch |
5910119 |
US $3.64 |
||
|
8
|
8
5246693 Pin-catch |
5246693 |
US $7.68 |
||
|
9
|
9
5521667 Seal-glovebox |
5521667 |
US $15.75 |
||
|
10
|
10
5434719-195 Cover-glovebox,eb greenAA; |
5434719-195 |
US $56.14 |
||
|
10
|
10
5434719-070 Cover-glovebox,blk4x4AB; |
5434719-070 |
US $56.14 |
||
|
10
|
10
5434719-515 Cover-glovebox,crimson4x4AC; |
5434719-515 |
US $51.21 |
||
|
10
|
10
5434719-342 Cover-glovebox,solar redAD;6x6AB; |
5434719-342 |
US $48.84 |
||
|
11
|
11
5435756-195
Dash, green
AA; |
5435756-195 |
— | ||
|
11
|
11
5436254-455 Dash-ranger,nbu,sub4x4AB; |
5436254-455 |
US $923.72 |
||
|
11
|
11
5435756-515 Dash-ranger,crimson red4x4AC; |
5435756-515 |
US $505.68 |
||
|
11
|
11
5435756-342
Dash, red
4x4AD;6x6AB; |
5435756-342 |
— | ||
|
12
|
12
5434763 Holder-cup |
5434763 |
US $3.64 |
||
|
13
|
13
7517561 Screw |
7517561 |
US $5.25 |
||
|
14
|
14
7670157 Nut-#10,u-type,ab(,025,150) |
7670157 |
US $1.49 |
||
|
15
|
15
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
16
|
16
7558221 Washer(10) |
7558221 |
US $0.79 |
||
|
17
|
17
5435922
Box-storage
|
5435922 |
— | ||
|
18
|
18
5020663 Pin |
5020663 |
US $15.02 |
||
|
19
|
19
5435685
Liner, hood
2x4;4x4; |
5435685 |
— | ||
|
19
|
19
5435974
Liner, hood
6x6; |
5435974 |
— | ||
|
20
|
20
7670090 Clip,plastic dart,nylon(10) |
7670090 |
US $39.40 |
||
|
21
|
21
7518238
Scr-10x5/8-hi/lo,pn-t25,trx-m
|
7518238 |
— | ||
|
22
|
22
5248655 Brkt-headlight |
5248655 |
US $33.65 |
||
|
23
|
23
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
24
|
24
2410503 Asm-headlight4x4AB; |
2410503 |
US $127.05 |
||
|
24
|
24
2410453
Asm-headlight
|
2410453 |
— | ||
|
24
|
24
4011029 Bulb-headlight,35/35 watt |
4011029 |
US $85.77 |
||
|
25
|
25
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
26
|
26
7555935 Washer |
7555935 |
US $3.26 |
||
|
27
|
27
5410370 Strap, hood latch |
5410370 |
US $18.32 |
||
|
28
|
28
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
29
|
29
5435728-070 Grille-hood,blk |
5435728-070 |
US $92.16 |
||
|
30
|
30
7670134 Clip-wire,adhesive back,1/2" |
7670134 |
US $7.68 |
