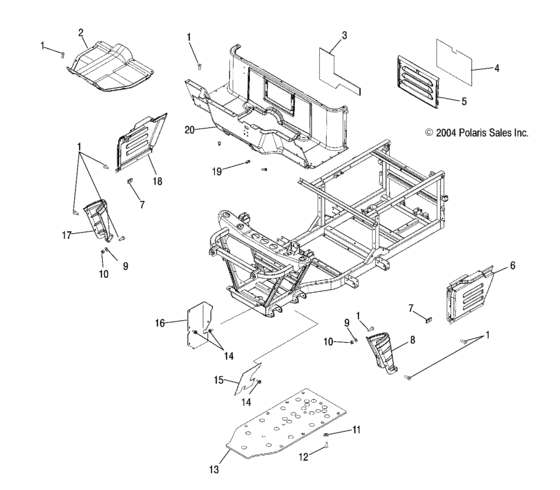

Moldings (R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
2
|
2
5435261 Cover-drive shaft,floorboard |
5435261 |
US $253.10 |
||
|
3
|
3
5812695 Foil-heat shield,floor |
5812695 |
US $9.15 |
||
|
4
|
4
5812694
Foil-heat shield
|
5812694 |
— | ||
|
5
|
5
2632972
Asm., floor, dog house cover
Incl. 4; |
2632972 |
— | ||
|
6
|
6
5435647-070 Fender-rear,lh,blk2x4;4x4; |
5435647-070 |
US $127.61 |
||
|
6
|
6
5435929-070 Fender-rear,6x6,lh,blk6x6; |
5435929-070 |
US $324.57 |
||
|
7
|
7
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
8
|
8
5435886-070 Fender-front,lh,blkIf built after 6/14/04; |
5435886-070 |
US $86.68 |
||
|
8
|
8
5435177-070
Fender, front, lh
If built before 6/14/04; |
5435177-070 |
— | ||
|
9
|
9
7555935 Washer |
7555935 |
US $3.26 |
||
|
10
|
10
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
11
|
11
7556065 WasherQty 15 for 6x6; |
7556065 |
US $6.69 |
||
|
12
|
12
7517386 Screw(10)Qty 15 for 6x6; |
7517386 |
US $19.60 |
||
|
13
|
13
5812704
Plate, skid
2x4; |
5812704 |
— | ||
|
13
|
13
5812534
Plate-skid,6x6
|
5812534 |
— | ||
|
14
|
14
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
15
|
15
5435970 Panel-wheel well |
5435970 |
US $65.99 |
||
|
16
|
16
5434807
Panel, wheel well, lh
|
5434807 |
— | ||
|
16
|
16
5434808
Panel, wheel well, rh
|
5434808 |
— | ||
|
17
|
17
5435178-070
Fender, front, rh
If built before 6/14/04; |
5435178-070 |
— | ||
|
17
|
17
5435887-070 Fender-front,rh,blkIf built after 6/14/04; |
5435887-070 |
US $86.68 |
||
|
18
|
18
5435648-070 Fender-rear,rh,blk2x4;4x4; |
5435648-070 |
US $106.37 |
||
|
18
|
18
5435930-070
Fender-rear,6x6,rh,blk
6x6; |
5435930-070 |
— | ||
|
19
|
19
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
||
|
20
|
20
2632973
Asm., floor, main
Incl. 7,19 and Foil; |
2632973 |
— |
