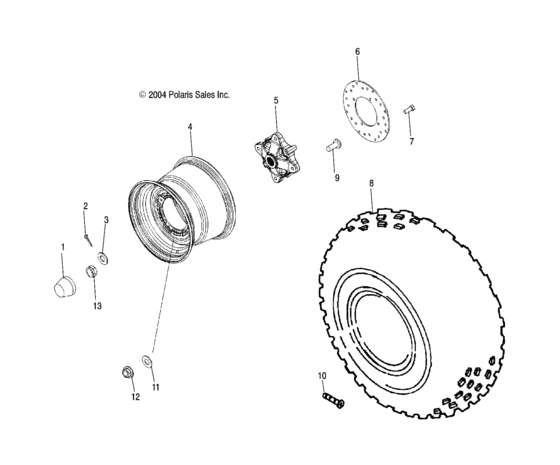

Rear wheel drive (R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411164
Cover, dust, hub
Qty 4 for 6x6; |
5411164 |
— | ||
|
2
|
2
7661404 Pin, cotterQty 4 for 6x6; |
7661404 |
US $5.25 |
||
|
3
|
3
7555796 Washer, coneQty 6 for 6x6; |
7555796 |
US $9.10 |
||
|
4
|
4
1520797-067 Rim,rear,12x8,10ga,blkQty 4 for 6x6AB; AA; |
1520797-067 |
US $160.46 |
||
| replacement | |||||
|
4
|
4
1523450-067 Rim,rear,12x8,10ga,blkQty 4 for 6x6AB; AA; |
1523450-067 |
US $160.46 |
||
|
4
|
4
1520810
Rim,rr,12x8,10ga,chrome
AC; |
1520810 |
— | ||
|
4
|
4
1520797-455
Rim,rear,12x8,10ga,nbu camo
4x4AB; |
1520797-455 |
— | ||
|
5
|
5
5134311 Hub-wheel,rear,mach2x4;4x4; |
5134311 |
US $90.93 |
||
|
5
|
5
5133361
Hub, rear wheel
6x6; |
5133361 |
— | ||
|
6
|
6
5244635 Disc,brake,rear,8,625x,158 |
5244635 |
US $73.87 |
||
|
7
|
7
7512325 BoltUse Qty 16 for 6x6; |
7512325 |
US $5.25 |
||
|
8
|
8
5412008 Tire-rear, 25x11-12,489Qty 4 for 6x6; AA; |
5412008 |
US $277.78 |
||
|
8
|
8
5412687
Tire, rear, 26x11r12, pxt
AC; |
5412687 |
— | ||
|
9
|
9
7515513 Stud(10) *Qty 16 for 6x6; |
7515513 |
US $19.60 |
||
|
10
|
10
1525017 Valve, rimQty 4 for 6x6; |
1525017 |
US $6.56 |
||
|
11
|
11
7556242 Washer-,385x,88x,075,fl-y thr2x4;4x4;Qty 16 for 6x6; |
7556242 |
US $3.94 |
||
|
12
|
12
7542459 Nut, flanged(10)Qty 16 for 6x6; |
7542459 |
US $65.60 |
||
|
13
|
13
7543005 Nut, castle |
7543005 |
US $9.84 |
||
