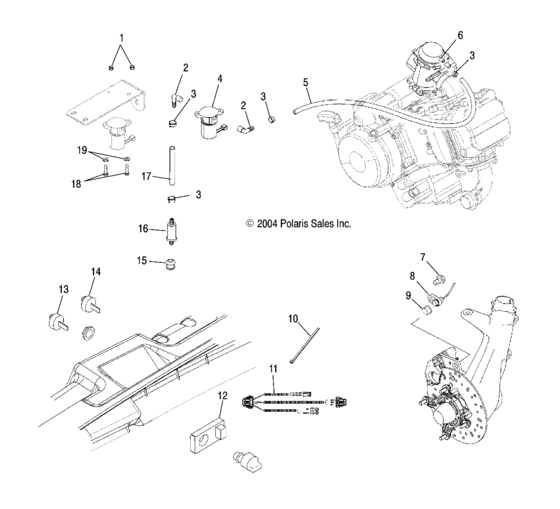

Speed control (R05RD50AD (4995359535F08); 4x4) Diagram Polaris RANGER 500 2X4,4X4,6X6
- Model code
- R05RB50AA/RD50AA/AB/AC/AD
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7541915 Nut |
7541915 |
US $2.28 |
||
|
2
|
2
7052378
Fitting-1/4nptx3/8barb,90?poly
|
7052378 |
— | ||
|
3
|
3
7080699
Clamp,hose
|
7080699 |
— | ||
|
4
|
4
7052379 Valve-1/4" air solenoid |
7052379 |
US $213.68 |
||
|
5
|
5
8450073-600 Line,breather,3/8 id, |
8450073-600 |
US $61.06 |
||
|
6
|
6
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
7
|
7
7517658 Screw |
7517658 |
US $3.75 |
||
|
8
|
8
2410376 Sensor-speed pickup |
2410376 |
US $86.68 |
||
|
9
|
9
5132382 Cap-hall sensor |
5132382 |
US $16.24 |
||
|
10
|
10
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
11
|
11
2410653 Harness-speed key |
2410653 |
US $195.35 |
||
|
12
|
12
4011297 Module-speed key |
4011297 |
US $235.04 |
||
|
13
|
13
5412877
Cover-igntn key,blk w/trnspndr
|
5412877 |
— | ||
|
14
|
14
5412878
Cover-igntn key,yellow
|
5412878 |
— | ||
|
15
|
15
5411774
Grommet-electric shock wire
|
5411774 |
— | ||
|
16
|
16
2530029 Filter,breather,in line |
2530029 |
US $6.91 |
||
|
17
|
17
8450073-30 Breather hose-30cm |
8450073-30 |
US $5.11 |
||
|
18
|
18
7511874
Screw
|
7511874 |
— | ||
|
19
|
19
7555727 Washer (50) |
7555727 |
US $0.79 |
