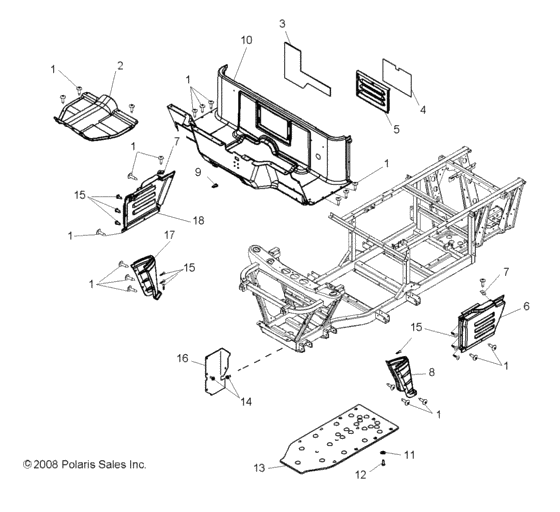

Body, floor and fenders (R09RB50AF) Diagram Polaris RANGER 500 2X4 CARB
- Model code
- R09RB50AF
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
2
|
2
5436402 Cover-drive shaft,floor |
5436402 |
US $51.21 |
||
|
3
|
3
5812695 Foil-heat shield,floor |
5812695 |
US $9.15 |
||
|
4
|
4
5812694
Foil-heat shield
|
5812694 |
— | ||
|
5
|
5
2632972-070 Asm-floor,dog house cover,blkIncl. 4; |
2632972-070 |
US $192.01 |
||
|
6
|
6
5435647-070 Fender-rear,lh,blk |
5435647-070 |
US $127.61 |
||
|
7
|
7
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
8
|
8
5435886-070 Fender-front,lh,blk |
5435886-070 |
US $86.68 |
||
|
9
|
9
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
||
|
10
|
10
2633434
Asm-floor,main,ranger
|
2633434 |
— | ||
|
11
|
11
7556065 Washer |
7556065 |
US $6.69 |
||
|
12
|
12
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
13
|
13
5813202 Plate-skid |
5813202 |
US $152.65 |
||
|
14
|
14
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
15
|
15
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
16
|
16
5436534 Panel-wheel well,lh |
5436534 |
US $162.26 |
||
|
16
|
16
5436535 Panel-wheel well,rh |
5436535 |
US $92.35 |
||
|
17
|
17
5435887-070 Fender-front,rh,blk |
5435887-070 |
US $86.68 |
||
|
18
|
18
5435648-070 Fender-rear,rh,blk |
5435648-070 |
US $106.37 |
