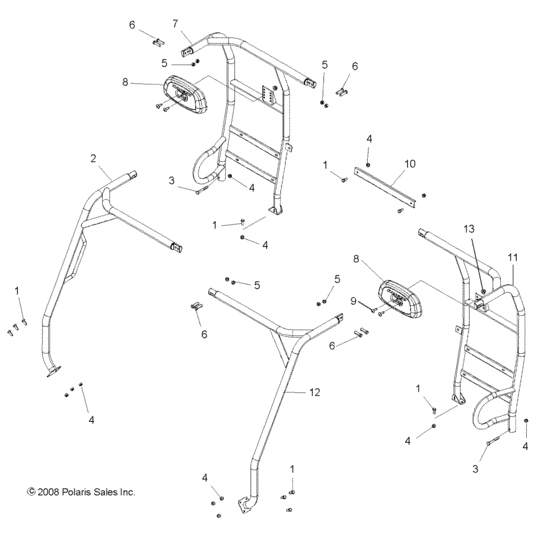

Chassis, cab frame (R09RB50AF) Diagram Polaris RANGER 500 2X4 CARB
- Model code
- R09RB50AF
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515321 Bolt |
7515321 |
US $1.89 |
||
|
2
|
2
1015906-067 Weld-cab frame,front,rh,blk |
1015906-067 |
US $590.85 |
||
|
3
|
3
7515339 Bolt |
7515339 |
US $3.26 |
||
|
4
|
4
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
5
|
5
7542451
Nut, nylok(10) *
|
7542451 |
— | ||
|
6
|
6
7517935 Scr-3/8,16x1 1/4 hxsoc cs zy3 |
7517935 |
US $3.26 |
||
|
7
|
7
1015908-067 Weld-cab frame,rr,rh,blk |
1015908-067 |
US $679.47 |
||
|
8
|
8
5437938-070 Headrest-ranger,basic,blk |
5437938-070 |
US $76.81 |
||
|
9
|
9
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
10
|
10
5248164-067 Brkt-cab frame,center,crossblk |
5248164-067 |
US $103.97 |
||
|
11
|
11
1015907-067 Weld-cab frame,rr,lh,blk |
1015907-067 |
US $679.47 |
||
|
12
|
12
1015905-067 Weld-cab frame,front,lh,blk |
1015905-067 |
US $590.85 |
||
|
13
|
13
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
