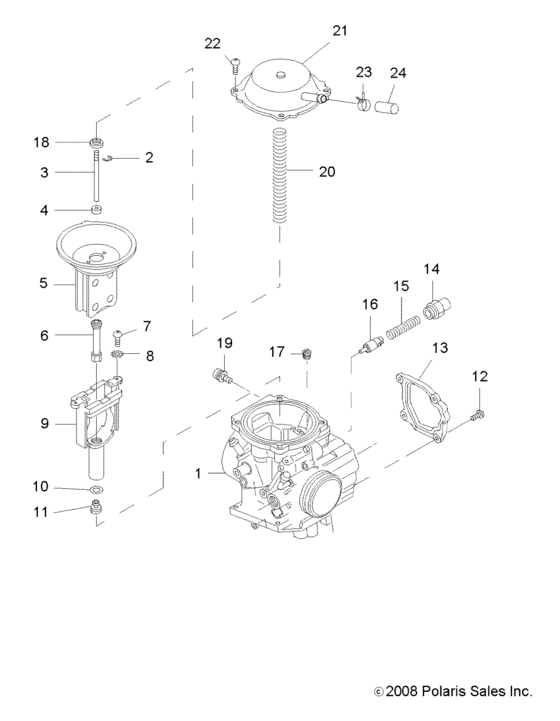

Engine, carburetor, upper (R09RB50AF) Diagram Polaris RANGER 500 2X4 CARB
- Model code
- R09RB50AF
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3131441 Asm-carburetorIncl. 2-11,13-18,20-22; |
3131441 |
US $673.58 |
||
|
2
|
2
3130508 E-ring(10) |
3130508 |
US $3.75 |
||
|
3
|
3
3131367 Needle-jet |
3131367 |
US $35.67 |
||
|
4
|
4
3130752 Ring |
3130752 |
US $7.09 |
||
|
5
|
5
3130732 Diaphragm asm, |
3130732 |
US $165.13 |
||
|
6
|
6
3131420
Jet, needle
|
3131420 |
— | ||
|
7
|
7
3130541 Screw |
3130541 |
US $9.85 |
||
|
8
|
8
3130540 Washer,spring |
3130540 |
US $2.98 |
||
|
9
|
9
3130504 Jetblock asm, |
3130504 |
US $56.14 |
||
|
10
|
10
3130014 Washer (10) |
3130014 |
US $1.77 |
||
|
11
|
11
3131426
Jet, main
|
3131426 |
— | ||
|
12
|
12
3130535 Screw |
3130535 |
US $4.73 |
||
|
13
|
13
3130511 Cover |
3130511 |
US $16.75 |
||
|
14
|
14
3130199 Holder,guide |
3130199 |
US $19.30 |
||
|
15
|
15
3130538 Spring |
3130538 |
US $3.06 |
||
|
16
|
16
3130593
Asm., plunger
|
3130593 |
— | ||
| replacement | |||||
|
16
|
16
3130539 Plunger asm, |
3130539 |
US $25.43 |
||
|
17
|
17
3130625 Jet,air,pilot,#160 |
3130625 |
US $13.20 |
||
|
18
|
18
3130507 Ring |
3130507 |
US $7.09 |
||
|
19
|
19
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
20
|
20
3130505 Spring |
3130505 |
US $14.28 |
||
|
21
|
21
3131419 Asm-cover |
3131419 |
US $56.14 |
||
|
22
|
22
3130592
Screw
|
3130592 |
— | ||
| replacement | |||||
|
22
|
22
3130924 Screw |
3130924 |
US $1.77 |
||
|
23
|
23
3131760
Clip
|
3131760 |
— | ||
|
24
|
24
3130622
Cap
|
3130622 |
— | ||
| replacement | |||||
|
24
|
24
3130379 Cap,vacuum fit |
3130379 |
US $8.17 |
||
