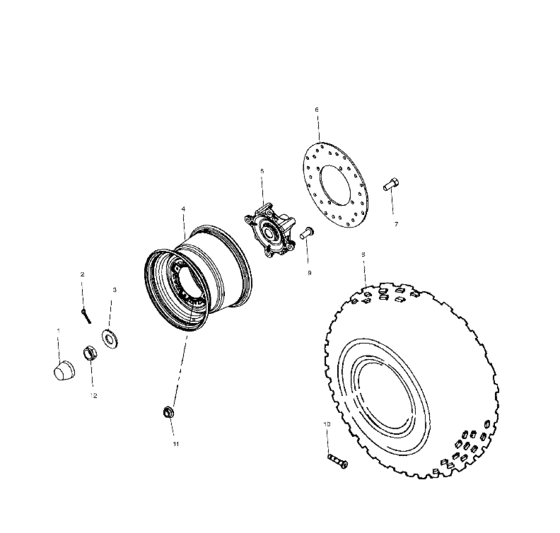

Rear wheel drive (A10RD50AA) Diagram Polaris RANGER 500
- Model code
- A10RD50AA
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
2
|
2
7661404 Pin, cotter10; |
7661404 |
US $5.25 |
||
|
3
|
3
7555796 Washer, cone10; |
7555796 |
US $9.10 |
||
|
4
|
4
1520483-067
Rim, rear, black
|
1520483-067 |
— | ||
|
5
|
5
5132520 Hub-rear wheel,mach * |
5132520 |
US $202.44 |
||
|
6
|
6
5244635 Disc,brake,rear,8,625x,158 |
5244635 |
US $73.87 |
||
|
7
|
7
7512325 Bolt10; |
7512325 |
US $5.25 |
||
|
8
|
8
5412008 Tire-rear, 25x11-12,489 |
5412008 |
US $277.78 |
||
|
9
|
9
7515513 Stud(10) *10; |
7515513 |
US $19.60 |
||
|
10
|
10
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
11
|
11
7542459 Nut, flanged(10)10; |
7542459 |
US $65.60 |
||
|
12
|
12
7543005 Nut, castle10; |
7543005 |
US $9.84 |
