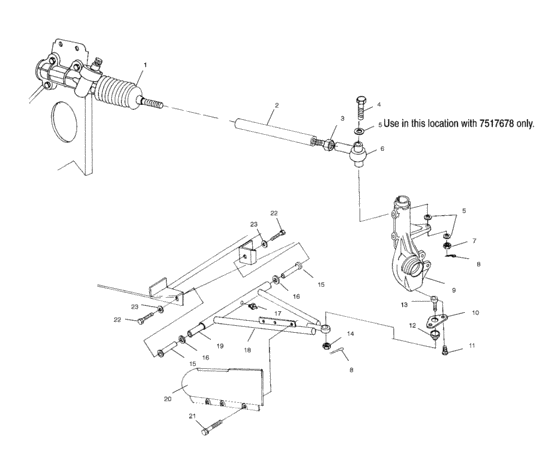

A-arm/strut mounting (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
1820709 Rod-tie,lh,m/f,ranger |
1820709 |
US $56.14 |
||
|
2
|
2
1820710 Rod-tie,rh,m/f,ranger |
1820710 |
US $50.24 |
||
|
3
|
3
7547028
Nut,jam,lh(10)
10; |
7547028 |
— | ||
|
4
|
4
7517678
Scr-m-10x1,25,60,hx
If built before 8/16/99; |
7517678 |
— | ||
|
4
|
4
7517674
Bolt
If built after 8/16/99; |
7517674 |
— | ||
| replacement | |||||
|
4
|
4
7517909 Bolt-m10x1,25x65,hx wash hdIf built after 8/16/99; |
7517909 |
US $7.68 |
||
|
4
|
4
7517907 Bolt-7/16-20x2,hxcap,gr5-yIf built after 1/01/01; |
7517907 |
US $5.22 |
||
|
5
|
5
7556099 Washer (10)If built before 8/16/99;If built after 8/16/99 use Qty. 4; |
7556099 |
US $1.89 |
||
|
6
|
6
7061053
Rod,end,m10,1/2-20lh,38 deg
If built before 8/16/99; |
7061053 |
— | ||
|
6
|
6
7061054
Rod, end, lh
If built after 8/16/99; |
7061054 |
— | ||
| replacement | |||||
|
6
|
6
7061138 Rod-end,10mm,1/2-20lh,42 degIf built after 8/16/99; |
7061138 |
US $59.06 |
||
|
7
|
7
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
7
|
7
7547177 Nut-m10x1,25-hx-lock-y10;If built after 1/01/01; |
7547177 |
US $3.75 |
||
|
8
|
8
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
10
|
10
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
11
|
11
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
12
|
12
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
12
|
12
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
13
|
13
7080673
Joint, ball
If built before 11/01/00; |
7080673 |
— | ||
| replacement | |||||
|
13
|
13
7080927
Joint, ball
If built before 11/01/00; |
7080927 |
— | ||
|
13
|
13
7080927
Joint, ball
If built after 11/01/00; |
7080927 |
— | ||
|
14
|
14
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
15
|
15
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
| replacement | |||||
|
15
|
15
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
16
|
16
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
17
|
17
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
18
|
18
1040682-067
A-frame,lh,black **
|
1040682-067 |
— | ||
|
18
|
18
1040683-067
A-frame,rh,black
|
1040683-067 |
— | ||
|
19
|
19
5131983 Shaft-a-arm (ranger)RANGER; |
5131983 |
US $34.49 |
||
|
20
|
20
5432731 Shield,rh,cv,blk, |
5432731 |
US $20.28 |
||
|
20
|
20
5432730 Shield,lh,cv,blk, |
5432730 |
US $20.28 |
||
|
21
|
21
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
22
|
22
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
23
|
23
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
