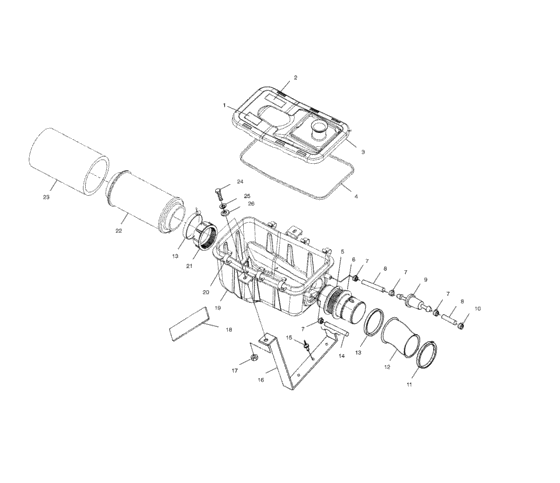

Air box (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7073761 Decal,carb,info, |
7073761 |
US $1.89 |
||
|
2
|
2
7072791
Decal,filter element
No Longer Available; |
7072791 |
— | ||
|
3
|
3
5432603
Cover,air box
|
5432603 |
— | ||
|
4
|
4
5811482
Seal, cover
|
5811482 |
— | ||
|
5
|
5
5830128 Gasket,carburetor inlet duct |
5830128 |
US $3.26 |
||
|
6
|
6
5432473 Duct,carburetor,inlet |
5432473 |
US $56.82 |
||
|
7
|
7
7080699
Clamp,hose
|
7080699 |
— | ||
|
8
|
8
5411492
Hose,breather,40 cm,
|
5411492 |
— | ||
|
9
|
9
2530029 Filter,breather,in line |
2530029 |
US $6.91 |
||
|
10
|
10
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
11
|
11
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
12
|
12
5411387
Boot,carb/airbox
|
5411387 |
— | ||
|
13
|
13
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
|
14
|
14
8450073-600 Line,breather,3/8 id, |
8450073-600 |
US $61.06 |
||
|
15
|
15
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
16
|
16
5243013-067 Brkt,airbox,blk |
5243013-067 |
US $45.47 |
||
|
17
|
17
7542143 Insert10; |
7542143 |
US $4.43 |
||
|
18
|
18
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
19
|
19
5433006
Box,air intake,4-stroke
|
5433006 |
— | ||
|
20
|
20
5242044 Clip |
5242044 |
US $7.68 |
||
|
21
|
21
5432601 Collar,carburetor,inlet |
5432601 |
US $9.85 |
||
|
22
|
22
7080595
Filter,air
|
7080595 |
— | ||
| replacement | |||||
|
22
|
22
7082101
FILTER-AIR INTAKE
|
7082101 |
— | ||
|
23
|
23
5811137 Foam, filter |
5811137 |
US $15.14 |
||
|
24
|
24
7515184
Screw
10; |
7515184 |
— | ||
| replacement | |||||
|
24
|
24
7512247 Bolt(10) *10; |
7512247 |
US $0.79 |
||
|
25
|
25
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
26
|
26
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
