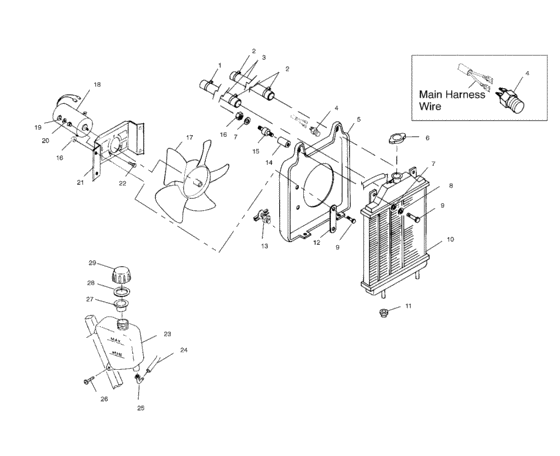

Cooling system (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080807
Clamp-hose
|
7080807 |
— | ||
|
2
|
2
7080614 Clamp,hose10; |
7080614 |
US $6.69 |
||
|
3
|
3
8450050-305
Hose,water,305 cm.
|
8450050-305 |
— | ||
|
4
|
4
4010202 Switch-thermal,4 stroke,500ccIf Built Before 6/08/99; |
4010202 |
US $59.10 |
||
|
4
|
4
4110256
Switch,thermal,4-strk
500;If Built After 6/08/99; |
4110256 |
— | ||
| replacement | |||||
|
4
|
4
4010202 Switch-thermal,4 stroke,500cc500;If Built After 6/08/99; |
4010202 |
US $59.10 |
||
|
5
|
5
5432851
Shroud,fan,(ranger)
RANGER; |
5432851 |
— | ||
|
6
|
6
2511189
Cap, radiator
|
2511189 |
— | ||
| replacement | |||||
|
6
|
6
2511270 Cap, pressure,(13 lb) *** |
2511270 |
US $22.45 |
||
|
7
|
7
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
8
|
8
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
9
|
9
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
10
|
10
1240029
Radiator,"u" flow
|
1240029 |
— | ||
|
11
|
11
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
12
|
12
5242511-067
Brkt,fan back,blk,
|
5242511-067 |
— | ||
|
13
|
13
7052181
Valve,drain cock
|
7052181 |
— | ||
|
14
|
14
5020572 Spacer, mount |
5020572 |
US $8.17 |
||
|
15
|
15
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
16
|
16
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
17
|
17
5242022
Blade,fan,nylon,9"
|
5242022 |
— | ||
|
18
|
18
4170023
Motor,fan,liq,
|
4170023 |
— | ||
|
19
|
19
7547004 Nut (10) |
7547004 |
US $2.45 |
||
|
20
|
20
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
|
21
|
21
5242512-067 Brkt,cool,fan,blk |
5242512-067 |
US $146.51 |
||
|
22
|
22
7511875 Screw10; |
7511875 |
US $2.98 |
||
|
23
|
23
5431673
Tank, surge
|
5431673 |
— | ||
|
24
|
24
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
25
|
25
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
26
|
26
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
27
|
27
5431895
Plug,cap
|
5431895 |
— | ||
| replacement | |||||
|
27
|
27
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
28
|
28
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
29
|
29
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
