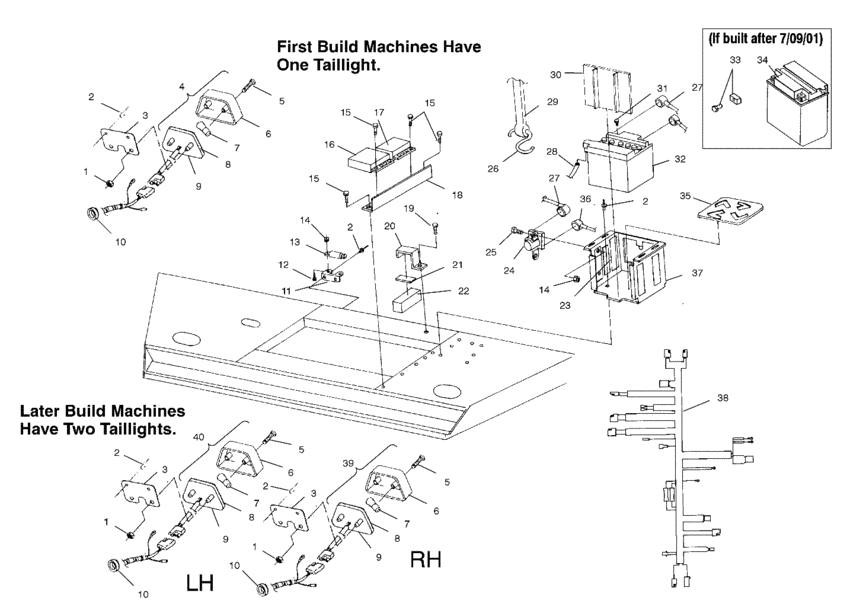

Electrical / battery (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
2
|
2
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
3
|
3
5211391-067 Isolator,taillight |
5211391-067 |
US $21.11 |
||
|
4
|
4
2410117
Taillight asm,
RANGER; |
2410117 |
— | ||
| replacement | |||||
|
4
|
4
2410144 Taillight,46"rangerRANGER; |
2410144 |
US $65.99 |
||
|
5
|
5
4032029 Screw |
4032029 |
US $2.98 |
||
|
6
|
6
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
7
|
7
4030043 Bulb |
4030043 |
US $4.94 |
||
|
8
|
8
4032045 Gasket |
4032045 |
US $5.11 |
||
|
9
|
9
4010203
Backing-tail/brakelight,29"
|
4010203 |
— | ||
|
9
|
9
4010216
Backing-taillight,long
|
4010216 |
— | ||
|
10
|
10
5411737 Grommet |
5411737 |
US $1.98 |
||
|
11
|
11
5242391-067
Brkt,coil,blk
|
5242391-067 |
— | ||
|
12
|
12
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
13
|
13
3084690
Coil asm,ignition
|
3084690 |
— | ||
|
14
|
14
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
15
|
15
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
16
|
16
4060173
Rectifier,full wave
|
4060173 |
— | ||
| replacement | |||||
|
16
|
16
2203636 Kit,rect-reg,rplc 4060173 |
2203636 |
US $190.24 |
||
|
17
|
17
4060188
Cutoff,12v,alt,opr,lr-58
|
4060188 |
— | ||
|
18
|
18
5131875
Heatsink, 6,5"
|
5131875 |
— | ||
|
19
|
19
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
20
|
20
5241416 Bracket-cdi |
5241416 |
US $7.09 |
||
|
21
|
21
5810455 Pad |
5810455 |
US $1.66 |
||
|
22
|
22
3084691
Cdi system
|
3084691 |
— | ||
| replacement | |||||
|
22
|
22
3085639 Cdi system * |
3085639 |
US $411.62 |
||
|
23
|
23
5811651
Pad, battery, side
|
5811651 |
— | ||
|
24
|
24
3083211
Switch-magnetic
|
3083211 |
— | ||
| replacement | |||||
|
24
|
24
3085521
Switch, magnetic
|
3085521 |
— | ||
|
25
|
25
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
26
|
26
5224472
Hook,'d',sst/ss,(10)
10; |
5224472 |
— | ||
|
27
|
27
4010134
Cable,pos,bat/sol/reg
|
4010134 |
— | ||
|
28
|
28
5433156 Tube,battery vent,88 cm |
5433156 |
US $2.07 |
||
|
28
|
28
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
29
|
29
5411726
Strap-rubber,10,00
|
5411726 |
— | ||
|
30
|
30
5432840 Retainer,battery |
5432840 |
US $19.51 |
||
|
31
|
31
2201155 Bolt,batt,kit,30 ampIf built before 7/09/01; |
2201155 |
US $1 |
||
|
32
|
32
4140012
Battery, 30 amp
If built before 7/09/01; |
4140012 |
— | ||
|
33
|
33
2202099 Battery bolt-kit,30ahIf built after 7/09/01; |
2202099 |
US $4.53 |
||
|
34
|
34
4010630 Battery-30 amp,top mountIf built after 7/09/01; |
4010630 |
US $151.64 |
||
|
35
|
35
5811623 Pad,battery |
5811623 |
US $3.64 |
||
|
36
|
36
4010129 Cable,sol/start,dblboot |
4010129 |
US $40.37 |
||
|
37
|
37
1040665-067
Box,battery,blk
|
1040665-067 |
— | ||
|
38
|
38
2460643
Harness,mainwire(sxs,6x6)
Incl. Circuit Breaker; SXS,6X6; |
2460643 |
— | ||
|
38
|
38
4010369
Breaker, circuit
|
4010369 |
— | ||
|
38
|
38
2200593 Kit,ckt,brkr,20 amp |
2200593 |
US $45.69 |
||
|
39
|
39
2410144 Taillight,46"ranger |
2410144 |
US $65.99 |
||
|
40
|
40
2410143
Taillight 29"
|
2410143 |
— | ||
