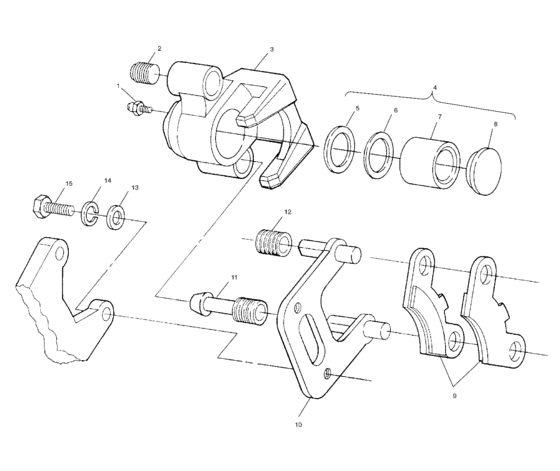

Front brake (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
2
|
2
7515489 Scr-3/8-24x5/16 soc set-y10; |
7515489 |
US $3.75 |
||
|
3
|
3
5131115
Caliper,lh,brake,mach.
Use w/1910234,1910309; |
5131115 |
— | ||
| replacement | |||||
|
3
|
3
5131261
Caliper,brake,lh.mach
Use w/1910234,1910309; |
5131261 |
— | ||
|
3
|
3
5131116
Caliper,rh,brake,mach.
Use w/1910235,1910310; |
5131116 |
— | ||
| replacement | |||||
|
3
|
3
5131262 Caliper, brake,rh,machUse w/1910235,1910310; |
5131262 |
US $60.03 |
||
|
3
|
3
5131997
Caliper,brk,mach,lh,1,25
Use w/1910465; |
5131997 |
— | ||
|
3
|
3
5130998
Desc not_available
Use w/1910466; |
5130998 |
— | ||
|
4
|
4
1930665 Piston & seal,kitIncl. 5-8; |
1930665 |
US $54.15 |
||
|
5
|
5
5410779 Ring,square,molded,,09410;.094; |
5410779 |
US $13.04 |
||
|
5
|
5
5411596 Seal-caliper,inner,1,25" |
5411596 |
US $4.73 |
||
|
6
|
6
5410780 Ring,square,molded,,103x,134.103 x .134; |
5410780 |
US $13.04 |
||
|
6
|
6
5411597 Seal-caliper,outer,1,25" |
5411597 |
US $7.89 |
||
|
7
|
7
5020506
Piston, caliper
Before 2/11/99; |
5020506 |
— | ||
| replacement | |||||
|
7
|
7
1930665 Piston & seal,kitBefore 2/11/99; |
1930665 |
US $54.15 |
||
|
7
|
7
5132294
Piston, brake, long
After 2/11/99; |
5132294 |
— | ||
| replacement | |||||
|
7
|
7
1930665 Piston & seal,kitAfter 2/11/99; |
1930665 |
US $54.15 |
||
|
7
|
7
5132405 Piston-caliper,1,25 |
5132405 |
US $23.64 |
||
|
8
|
8
5910026
Insulator,caliper,fr.
Before 2/11/99; |
5910026 |
— | ||
| replacement | |||||
|
8
|
8
1930665 Piston & seal,kitBefore 2/11/99; |
1930665 |
US $54.15 |
||
|
9
|
9
2200901 Kit,front,brakepad,hvy,dutyComplete set of 2 pads; |
2200901 |
US $68.92 |
||
|
9
|
9
2200465 Kit,front,brakepad,med,dutyComplete set of 2 pads; |
2200465 |
US $59.06 |
||
|
9
|
9
2201149 Kit,front,brakepad,lght,dutyATV; |
2201149 |
US $64.02 |
||
|
9
|
9
2201398
Kit, front brake pad
Use w/1910465,1910466; |
2201398 |
— | ||
|
10
|
10
1910299
Mt,fr.caliper asm.
Before 7/09/99; |
1910299 |
— | ||
| replacement | |||||
|
10
|
10
1910411
Asm., mount, caliper
Before 7/09/99; |
1910411 |
— | ||
|
10
|
10
1910411
Asm., mount, caliper
After 7/09/99; |
1910411 |
— | ||
|
11
|
11
5410495
Boot, bushing
|
5410495 |
— | ||
|
12
|
12
5410494
Boot, pin seal
|
5410494 |
— | ||
