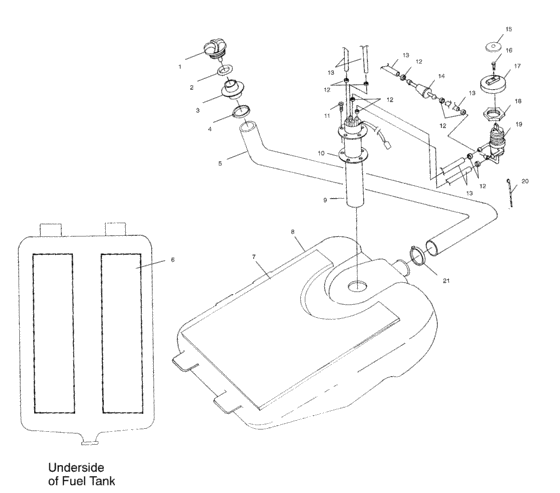

Fuel tank (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2520148
Cap asm,fuel,ratchet
|
2520148 |
— | ||
| replacement | |||||
|
1
|
1
2201745
Kit-asm,fuel cap
|
2201745 |
— | ||
|
2
|
2
5411305 Seal,fuel cap |
5411305 |
US $37.52 |
||
|
3
|
3
5432639
Inlet,fuel
|
5432639 |
— | ||
| replacement | |||||
|
3
|
3
2201745
Kit-asm,fuel cap
|
2201745 |
— | ||
|
4
|
4
7080656
Clamp,band,narrow
|
7080656 |
— | ||
|
5
|
5
5411517
Hose,fill,fuel
RANGER; |
5411517 |
— | ||
|
6
|
6
5811719
Pad-fuel tank,bottom
|
5811719 |
— | ||
|
7
|
7
5811720
Pad-fuel tank,top
|
5811720 |
— | ||
|
8
|
8
5432764 Tank,fuel |
5432764 |
US $152.65 |
||
|
9
|
9
2410092
Sender,fuel,w/pickup
If built before 1/14/00; |
2410092 |
— | ||
|
9
|
9
2410216
Sender,fuel,w/ p/u,3 port
If built after 1/14/00; |
2410216 |
— | ||
|
10
|
10
5810858 Gasket |
5810858 |
US $61.34 |
||
|
11
|
11
7512045 Bolt, ss,10; |
7512045 |
US $2.45 |
||
|
12
|
12
7080003 Clamp,hose(10)10;Use Qty. 11 if built before 1/14/00 and Qty. 7 if built after 1/14/00; |
7080003 |
US $0.79 |
||
|
13
|
13
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
14
|
14
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
15
|
15
7077365
Decal,fuel lever
If built before 1/14/00; |
7077365 |
— | ||
|
16
|
16
7517505 Screw(10)10;If built before 1/14/00; |
7517505 |
US $1.49 |
||
|
17
|
17
5432559 Knob,fuel valveIf built before 1/14/00; |
5432559 |
US $9.15 |
||
|
18
|
18
5432733 Nut,fuel valveIf built before 1/14/00; |
5432733 |
US $2.98 |
||
|
19
|
19
7052161 Valve,3-wayIf built before 1/14/00; |
7052161 |
US $31.52 |
||
|
20
|
20
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
21
|
21
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
