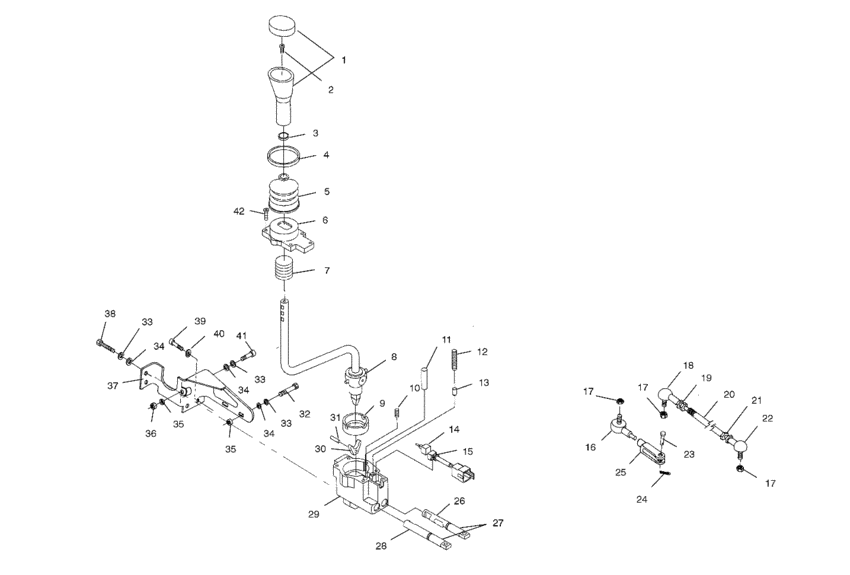

Gear selector (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233560
Knob
|
3233560 |
— | ||
|
2
|
2
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
3
|
3
3233131 Strap, wire |
3233131 |
US $9.15 |
||
|
4
|
4
3233132 Clamp |
3233132 |
US $7.68 |
||
|
5
|
5
3233368 Boot,gear selector |
3233368 |
US $17.73 |
||
|
6
|
6
3233213
Cover,gear selector
|
3233213 |
— | ||
|
7
|
7
3233158 Spring,holding |
3233158 |
US $4.94 |
||
|
8
|
8
3233561
Handle
|
3233561 |
— | ||
|
9
|
9
3233063 Cup,bearing |
3233063 |
US $15.75 |
||
|
10
|
10
3233083
Spring,centering
|
3233083 |
— | ||
|
11
|
11
3233062 Pin, stop |
3233062 |
US $13.20 |
||
|
12
|
12
3233069 Spring,detent |
3233069 |
US $7.09 |
||
|
13
|
13
3233060 Bullet,detent |
3233060 |
US $79.68 |
||
|
14
|
14
3233455
Sw,gearselect,w/thrm,jkt,
|
3233455 |
— | ||
|
15
|
15
3233090
Strap, wire
|
3233090 |
— | ||
|
16
|
16
7061032
Rod end,rh,6mm,male
|
7061032 |
— | ||
|
17
|
17
7546707
Nut
10; |
7546707 |
— | ||
| replacement | |||||
|
17
|
17
7546703
Nut,nylok
10; |
7546703 |
— | ||
|
18
|
18
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
19
|
19
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
20
|
20
5131926
Rod,shift linkage,high
|
5131926 |
— | ||
|
21
|
21
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
22
|
22
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
23
|
23
7661013 Pin,clevis |
7661013 |
US $3.94 |
||
|
24
|
24
7661103 Pin, cotter10; |
7661103 |
US $3.26 |
||
|
25
|
25
7080796 Clevis,threaded |
7080796 |
US $3.94 |
||
|
26
|
26
3233499
Slide,high/rev
|
3233499 |
— | ||
|
27
|
27
3233076 O-ring |
3233076 |
US $8.17 |
||
|
28
|
28
3233089
Slide,low
|
3233089 |
— | ||
|
29
|
29
3233216
Body,gear selector
|
3233216 |
— | ||
|
30
|
30
3233084
Interlock,butterfly
|
3233084 |
— | ||
|
31
|
31
3233070
Pin,interlock
|
3233070 |
— | ||
|
32
|
32
7512126 Screw10; |
7512126 |
US $2.45 |
||
|
33
|
33
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
34
|
34
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
35
|
35
5131946
Spacer
|
5131946 |
— | ||
|
36
|
36
7542103 Nut,flexloc10; |
7542103 |
US $9.19 |
||
|
37
|
37
1012807-067 Shift bracket,blk |
1012807-067 |
US $157.15 |
||
|
38
|
38
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
39
|
39
7512589 Bolt(10)10; |
7512589 |
US $1.89 |
||
|
40
|
40
7552614 Washer, lock10; |
7552614 |
US $2.45 |
||
|
41
|
41
7512249 Bolt10; |
7512249 |
US $2.45 |
||
|
42
|
42
3233498 Screw,magnigard coated |
3233498 |
US $7.07 |
||
