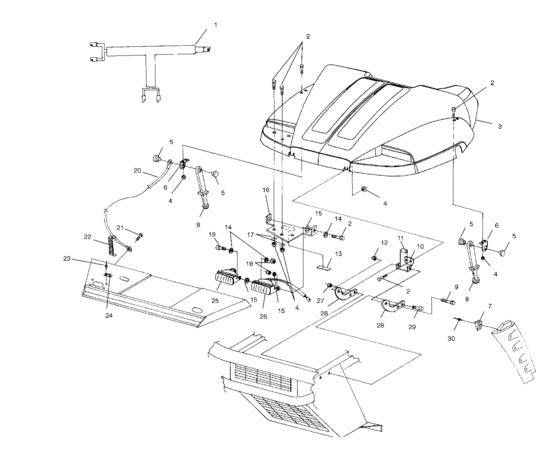

Hood (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460644 Harness,h/l,(sxs,6x6)SXS,6X6; |
2460644 |
US $157.15 |
||
|
2
|
2
7517298 Screw |
7517298 |
US $3.94 |
||
|
3
|
3
5432694-195
Hood,side x side,eb.grn.
|
5432694-195 |
— | ||
|
4
|
4
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
5
|
5
7621601
Rivet
50; |
7621601 |
— | ||
|
6
|
6
5242765-067 Brkt,hood strap,blk, |
5242765-067 |
US $14.28 |
||
|
7
|
7
5430733 Cup, hood latch(10)10; |
5430733 |
US $3.75 |
||
|
8
|
8
5410370 Strap, hood latch |
5410370 |
US $18.32 |
||
|
9
|
9
7515339 Bolt10; |
7515339 |
US $3.26 |
||
|
10
|
10
5242627-067 Hinge,rh,hood,blk,RANGER; |
5242627-067 |
US $27.39 |
||
|
10
|
10
5242931-067
Hinge,lh,hood,blk,
|
5242931-067 |
— | ||
|
11
|
11
5131915-067
Spacer-hinge,blk
|
5131915-067 |
— | ||
|
12
|
12
7547095 Nutsert-#10-24,hex |
7547095 |
US $3.75 |
||
|
13
|
13
7077616
Decal,info.,headlamp
|
7077616 |
— | ||
|
14
|
14
7555998 Washer,flat(10) *10; |
7555998 |
US $0.79 |
||
|
15
|
15
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
16
|
16
5242737-067
Brkt,headlight,blk
|
5242737-067 |
— | ||
|
17
|
17
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
18
|
18
7546601
Nut, nylok(10)
10; |
7546601 |
— | ||
|
19
|
19
7511909 Screw10; |
7511909 |
US $2.45 |
||
|
20
|
20
7080414
Cable,hood retainer
|
7080414 |
— | ||
|
21
|
21
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
22
|
22
7041202
Spring,hood cable
|
7041202 |
— | ||
|
23
|
23
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
24
|
24
7080372 Clamp, retainer10; |
7080372 |
US $2.45 |
||
|
25
|
25
4030067 H/l,single beam,fog |
4030067 |
US $76.27 |
||
|
25
|
25
4010204 Bulb,harness asm,35w,fog beam |
4010204 |
US $21.35 |
||
|
25
|
25
4010389 Bulb-50watt,cargo lamp,hobbs |
4010389 |
US $37.52 |
||
|
26
|
26
4030068 H/l,single beam,35 w |
4030068 |
US $71.52 |
||
|
26
|
26
4010204 Bulb,harness asm,35w,fog beam |
4010204 |
US $21.35 |
||
|
27
|
27
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
28
|
28
5242535-067 Mount,hinge,blk |
5242535-067 |
US $14.28 |
||
|
29
|
29
7515189 Screw(10) *10; |
7515189 |
US $1.89 |
||
|
30
|
30
7621334 Rivet(50)50; |
7621334 |
US $187.50 |
