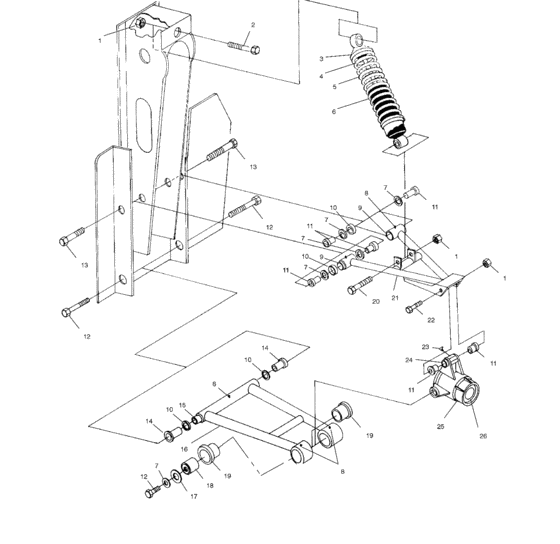

Middle shock mounting (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
2
|
2
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
3
|
3
5210953 Spring retainer10; |
5210953 |
US $4.73 |
||
|
4
|
4
5220225 Retainer-top |
5220225 |
US $12.79 |
||
|
5
|
5
7041658-195
Spring,mid axle
|
7041658-195 |
— | ||
|
6
|
6
7041663 Shock,middle axle |
7041663 |
US $84.46 |
||
|
7
|
7
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
8
|
8
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
9
|
9
5020951 Shaft,a-arm,short,mid axle |
5020951 |
US $37.43 |
||
|
10
|
10
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
11
|
11
5433063
Bushing, a-arm, short
|
5433063 |
— | ||
| replacement | |||||
|
11
|
11
5439270 Bushing-a-arm-short,blk |
5439270 |
US $3.94 |
||
|
12
|
12
7517297 Screw(10)10; |
7517297 |
US $3.75 |
||
|
13
|
13
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
14
|
14
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
| replacement | |||||
|
14
|
14
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
15
|
15
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
16
|
16
1040635-067
A-arm,mid-axle,low,blk
|
1040635-067 |
— | ||
|
17
|
17
7555936 Washer(10) *10; |
7555936 |
US $5.64 |
||
|
18
|
18
5131883 Bushing,brng,carrier |
5131883 |
US $32.29 |
||
|
19
|
19
5433065
Bushing, control, lower
|
5433065 |
— | ||
| replacement | |||||
|
19
|
19
5438902 Bushing-control,lower,blk |
5438902 |
US $98.50 |
||
|
20
|
20
7515415 Screw(10)10; |
7515415 |
US $1.49 |
||
|
21
|
21
1040636-067
A-arm,mid axle,up,blk
|
1040636-067 |
— | ||
|
22
|
22
7515472 Bolt10; |
7515472 |
US $6.56 |
||
|
23
|
23
7080586 Fitting,lube,45 deg,(10)10; |
7080586 |
US $1.89 |
||
|
24
|
24
5020826 Shaft,a-arm,short |
5020826 |
US $13.79 |
||
|
25
|
25
5131738
Carrier, wheel bearing
MACH; |
5131738 |
— | ||
|
26
|
26
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
26
|
26
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
