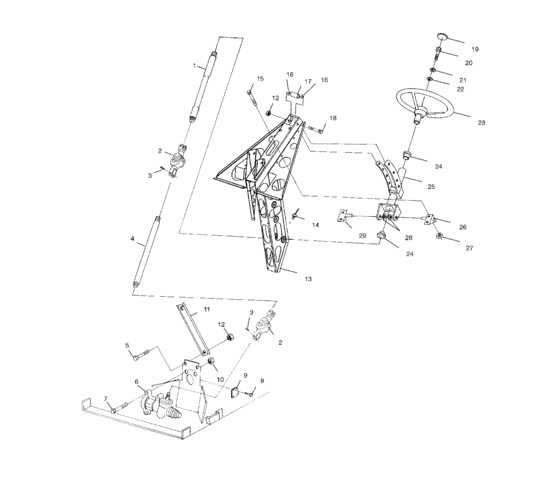

Steering (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1822572-067
Shaft,upper strg,blk,
|
1822572-067 |
— | ||
|
2
|
2
1822564 Joint,steering |
1822564 |
US $107.36 |
||
|
3
|
3
7517588
Bolt
No Longer Available; |
7517588 |
— | ||
|
4
|
4
1822565-067 Shaft,steering,blk |
1822565-067 |
US $73.87 |
||
|
5
|
5
7515398 Screw10; |
7515398 |
US $3.75 |
||
|
6
|
6
1822552
Gearbox asm,steering
|
1822552 |
— | ||
|
6
|
6
5411727
Boot,rubber
|
5411727 |
— | ||
|
7
|
7
7512539 Bolt10; |
7512539 |
US $3.26 |
||
|
8
|
8
7515395
Screw
10; |
7515395 |
— | ||
|
9
|
9
5242902-067 Plate,acc,,low steer,blk |
5242902-067 |
US $41.04 |
||
|
10
|
10
7542525 Nut, nylok10; |
7542525 |
US $2.45 |
||
|
11
|
11
5333655-067
Brace,up,steering,blk,
|
5333655-067 |
— | ||
|
12
|
12
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
13
|
13
1040698-067
Mount,brake,blk
|
1040698-067 |
— | ||
|
14
|
14
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
15
|
15
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
16
|
16
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
17
|
17
5333332-067 Spacer |
5333332-067 |
US $8.17 |
||
|
18
|
18
7515385 Screw10; |
7515385 |
US $3.94 |
||
|
19
|
19
5432950 Cap,steering wheel |
5432950 |
US $14.28 |
||
|
20
|
20
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
21
|
21
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
22
|
22
7555893 Washer,flat(10)10; |
7555893 |
US $0.79 |
||
|
23
|
23
1822570 Wheel,steering |
1822570 |
US $177.82 |
||
|
24
|
24
5432890
Bushing,strg,column
|
5432890 |
— | ||
|
25
|
25
1040697-067 Column,steering,blk |
1040697-067 |
US $590.85 |
||
|
26
|
26
1040695-067
Mount,lh,steering,blk.
|
1040695-067 |
— | ||
|
27
|
27
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
28
|
28
7710415 Ring, retainer10; |
7710415 |
US $2.45 |
||
|
29
|
29
1040696-067
Mount,rh,steering,blk.
|
1040696-067 |
— |
