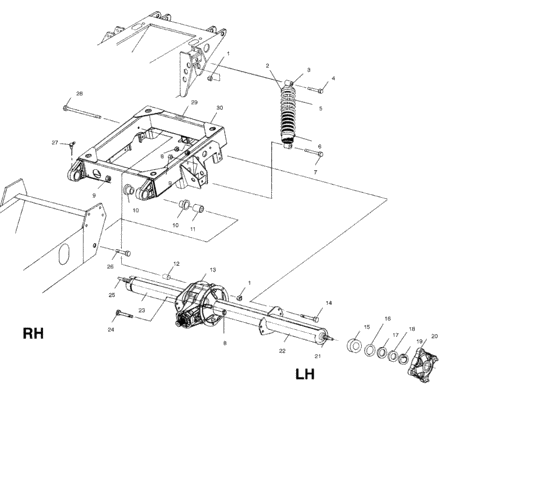

Swing arm/rear shock (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
7041662-195
Spring-comp,200/250 lb/in,ebgr
|
7041662-195 |
— | ||
|
3
|
3
5241147
Retainer, shock
|
5241147 |
— | ||
|
4
|
4
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
4
|
4
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
5
|
5
7041661 Shock,r,axle |
7041661 |
US $127.05 |
||
|
6
|
6
5630883
Cam,adjuster
|
5630883 |
— | ||
|
7
|
7
7517558 Bolt,shoulder |
7517558 |
US $13.14 |
||
|
8
|
8
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
9
|
9
7547096 Nut-9/16-18,nylon locknut,z |
7547096 |
US $3.75 |
||
|
10
|
10
5432637
Bushing,rh,swingarm,hybrid
|
5432637 |
— | ||
| replacement | |||||
|
10
|
10
5434546 Bushing-rh,hybrid,blk |
5434546 |
US $10.83 |
||
|
11
|
11
5020972
Shaft,swingarm pivot
|
5020972 |
— | ||
|
12
|
12
5131921
Desc not_available
|
5131921 |
— | ||
|
14
|
14
7512405 Bolt(10)10; |
7512405 |
US $0.79 |
||
|
15
|
15
3513523 Bearing,ball,dbl,seal |
3513523 |
US $31.52 |
||
|
16
|
16
5411417
O-ring
|
5411417 |
— | ||
|
17
|
17
5131790
Spacer,bearing
|
5131790 |
— | ||
|
18
|
18
3610013 Seal, rear axle |
3610013 |
US $30.10 |
||
|
19
|
19
7710471 Ring,retainer,int, |
7710471 |
US $9.15 |
||
|
21
|
21
1380127
Driveshaft asm,lh,axle
|
1380127 |
— | ||
|
22
|
22
1040639-067
Tube,axle,lh,blk
|
1040639-067 |
— | ||
|
23
|
23
1040640-067
Tube,axle,rh,blk
|
1040640-067 |
— | ||
|
24
|
24
7517507 Bolt |
7517507 |
US $15.26 |
||
|
25
|
25
1380128
Driveshaft asm,rh,axle
|
1380128 |
— | ||
|
26
|
26
7517558 Bolt,shoulder |
7517558 |
US $13.14 |
||
|
27
|
27
7080586 Fitting,lube,45 deg,(10)10; |
7080586 |
US $1.89 |
||
|
28
|
28
7517478
Screw
|
7517478 |
— | ||
|
29
|
29
7077682
Decal-hitch
|
7077682 |
— | ||
|
30
|
30
1040655-067 Arm,swing,blk |
1040655-067 |
US $835.08 |
||
