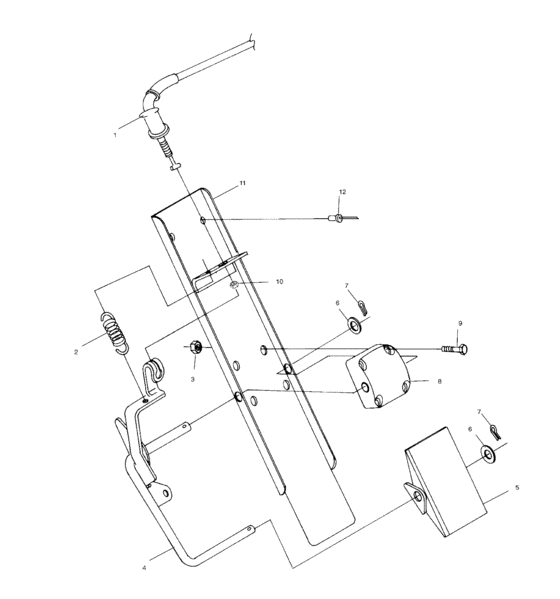

Throttle (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080711
Cable,throttle
|
7080711 |
— | ||
|
2
|
2
7042032
Spring,latch,return
|
7042032 |
— | ||
|
3
|
3
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
4
|
4
1040720-067 Link,throttle,blk |
1040720-067 |
US $219.78 |
||
|
5
|
5
5242725-067
Pedal,throttle,blk
|
5242725-067 |
— | ||
|
6
|
6
7555954 Washer10; |
7555954 |
US $2.45 |
||
|
7
|
7
7661103 Pin, cotter10; |
7661103 |
US $3.26 |
||
|
8
|
8
5432940
Block,throttle pivot
|
5432940 |
— | ||
|
9
|
9
7515102 Screw10; |
7515102 |
US $3.94 |
||
|
10
|
10
7546901 Nut, rh, 10 mm,10; |
7546901 |
US $2.98 |
||
|
11
|
11
1012782-067 Brkt,throttle |
1012782-067 |
US $20.28 |
||
|
12
|
12
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
