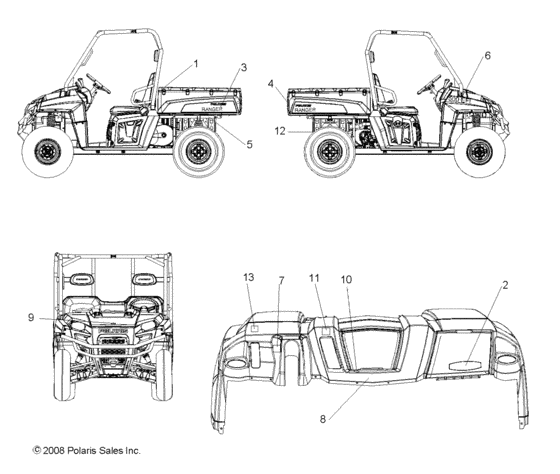

Body, decals (R09HH50AG/AR) Diagram Polaris RANGER 500 4X4 EFI
- Model code
- R09HH50AG/AR
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7174886
Decal, warn, cont/pass/tire pressure
|
7174886 |
— | ||
|
2
|
2
5252753 Plate-hwsr,ranger,w/0 holes |
5252753 |
US $25.74 |
||
|
3
|
3
7175578
Decal-box,ranger4x4,solar r,rh
AR; |
7175578 |
— | ||
|
3
|
3
7175574
Decal-box,ranger 4x4,s,b,g,lh
AG; |
7175574 |
— | ||
|
3
|
3
7175577
Decal-box,ranger4x4,solar r,lh
AR; |
7175577 |
— | ||
|
3
|
3
7175575
Decal-box,ranger 4x4,s,b,g,rh
AG; |
7175575 |
— | ||
|
4
|
4
7175576 Decal-polaris,tailgate,white |
7175576 |
US $8.17 |
||
|
5
|
5
7175628 Decal-reflector,red |
7175628 |
US $8.17 |
||
|
6
|
6
7175572
Decal-hood,500 efi,lh
|
7175572 |
— | ||
|
6
|
6
7175573
Decal-hood,500 efi,rh
|
7175573 |
— | ||
|
7
|
7
7175566
Decal, age warning, 16
|
7175566 |
— | ||
|
8
|
8
7175565
Decal, warning, discretionary
|
7175565 |
— | ||
|
9
|
9
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
10
|
10
7170739 Decal-"apply brake to start" |
7170739 |
US $9.15 |
||
|
11
|
11
7172674 Decal, caution, "shift at idle" |
7172674 |
US $3.36 |
||
|
12
|
12
7173402
Decal-hitch,1400/1500 lbs, max
|
7173402 |
— | ||
|
13
|
13
7174926 Decal, park brake |
7174926 |
US $1.28 |
