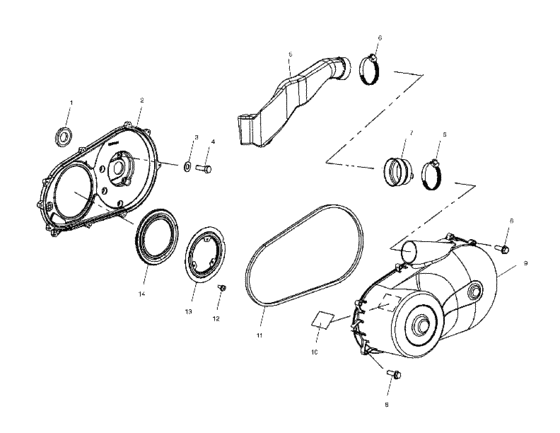

Clutch cover (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410489 Seal,cover case |
5410489 |
US $10.85 |
||
|
2
|
2
5434234
Cover, clutch, inner
|
5434234 |
— | ||
|
3
|
3
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
4
|
4
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
5
|
5
5434247
Duct, clutch outlet
|
5434247 |
— | ||
|
6
|
6
7080707 Clamp,band,narrow (10) |
7080707 |
US $52.50 |
||
|
7
|
7
5411489 Boot,duct,hi-flow |
5411489 |
US $10.85 |
||
|
8
|
8
7512094 Screw(10) *10; |
7512094 |
US $39.40 |
||
|
9
|
9
5433451-070
Cover, clutch, outer
|
5433451-070 |
— | ||
| replacement | |||||
|
9
|
9
5438142-070 Cover-clutch outer,hv,blk |
5438142-070 |
US $182.19 |
||
|
10
|
10
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
11
|
11
5521578
Seal, cover, clutch, outer
|
5521578 |
— | ||
|
12
|
12
3084205 Asm,,screw & washer(10)10; |
3084205 |
US $5.04 |
||
|
13
|
13
5242046-067
Bracket, clutch seal
|
5242046-067 |
— | ||
|
14
|
14
5410575
Seal, cover case
|
5410575 |
— | ||
