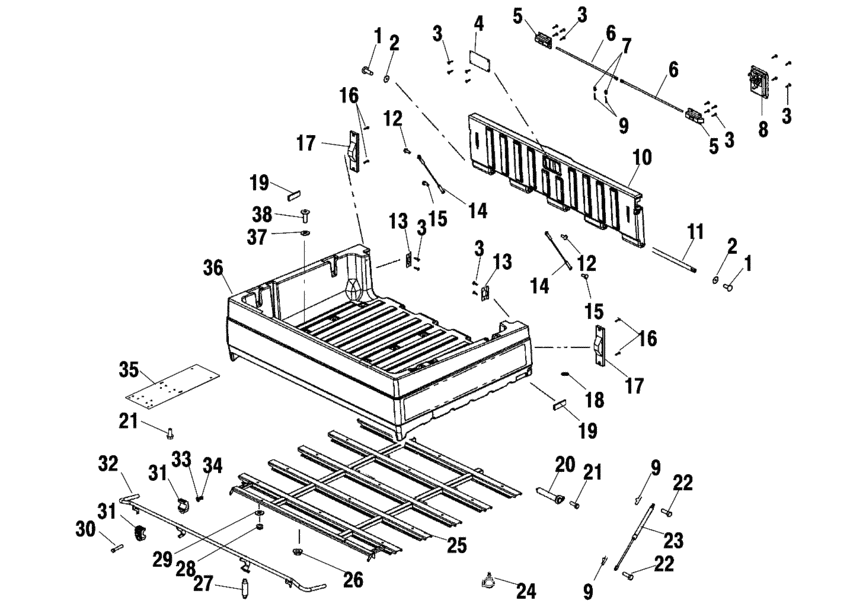

Dump box (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515177 Screw |
7515177 |
US $3.94 |
||
|
2
|
2
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
3
|
3
7517561 Screw |
7517561 |
US $5.25 |
||
|
4
|
4
5244068-067 Cover-tailgate,blk |
5244068-067 |
US $17.15 |
||
|
5
|
5
5433656 Latch,flshblt,tlgate,blk |
5433656 |
US $56.14 |
||
|
6
|
6
5132810
Shaft-tailgate latch,5/16
|
5132810 |
— | ||
|
7
|
7
7556143 Wshr,rubber w/metal back |
7556143 |
US $2.98 |
||
|
8
|
8
5433655 Latch,paddle,t-gate,blk |
5433655 |
US $87.94 |
||
|
9
|
9
7661644 Pin,hitch(10) * |
7661644 |
US $0.79 |
||
|
10
|
10
5433951
Tailgate-plastic,ranger
|
5433951 |
— | ||
|
11
|
11
5132811 Rod-hinge,tailgate,ranger |
5132811 |
US $168.39 |
||
|
12
|
12
7517742 Screw1/4-20x3/4pa pn,lk,g2-y |
7517742 |
US $3.94 |
||
|
13
|
13
5243304 Brkt-box latch |
5243304 |
US $12.20 |
||
|
14
|
14
7081001 Cable-tailgate,ranger |
7081001 |
US $27.39 |
||
|
15
|
15
7517938 Screw-1/4-20x2 (10) |
7517938 |
US $21.02 |
||
|
16
|
16
7517790 Scr,#10x3/4 hi/lo |
7517790 |
US $3.26 |
||
|
17
|
17
2410322 Asm-tailight w/brake light,np |
2410322 |
US $73.83 |
||
|
17
|
17
4010340 Bulb,taillight |
4010340 |
US $6.69 |
||
|
18
|
18
5411009 Plug, hole |
5411009 |
US $3.26 |
||
|
19
|
19
7079925 Decal-reflect,2,88,red |
7079925 |
US $3.64 |
||
|
20
|
20
1013511-067
Pin, box hinge, black
|
1013511-067 |
— | ||
|
21
|
21
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
22
|
22
7661037 Pin,clevis |
7661037 |
US $3.75 |
||
|
23
|
23
7041996 Shock-dump box 19,50 |
7041996 |
US $71.89 |
||
|
24
|
24
7670116 Clip,routing,,472 b,d,,hinged |
7670116 |
US $3.94 |
||
|
25
|
25
1013634-067
Base, box
|
1013634-067 |
— | ||
|
26
|
26
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
27
|
27
7041687 Spring |
7041687 |
US $7.88 |
||
|
28
|
28
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
29
|
29
7555788 Washer, thrust |
7555788 |
US $3.26 |
||
|
30
|
30
7515319 Bolt |
7515319 |
US $3.26 |
||
|
31
|
31
5434226 Bushing-box,latch |
5434226 |
US $2.98 |
||
|
32
|
32
1013814-067
Weld-box latch,rngr,6x6,blk
|
1013814-067 |
— | ||
|
33
|
33
7555770
Washer
|
7555770 |
— | ||
| replacement | |||||
|
33
|
33
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
34
|
34
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
35
|
35
5246389 Shield-exhaust,box |
5246389 |
US $52.45 |
||
|
36
|
36
5434639-070
Box-molded,ranger 6x6,mod,blk
|
5434639-070 |
— | ||
|
37
|
37
7556157 Washer,,391x1,25x,105-m |
7556157 |
US $1.89 |
||
|
38
|
38
7517959 Scr-3/8-16x1 |
7517959 |
US $6.69 |
||
