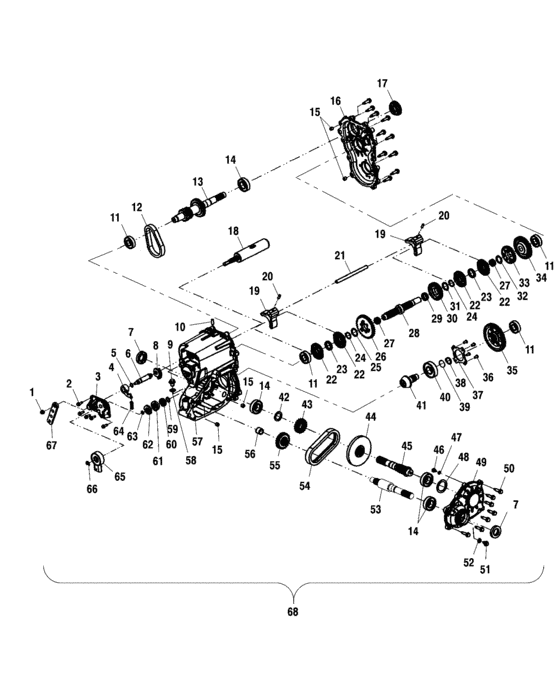

Gearcase (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233961 Nut-lock hex flange nylon 5/16 |
3233961 |
US $5.48 |
||
|
2
|
2
3233826 Screw |
3233826 |
US $8.66 |
||
|
3
|
3
3233827 Cover-sector gears |
3233827 |
US $106.37 |
||
|
4
|
4
3233829 Pawl-detent |
3233829 |
US $22.45 |
||
|
5
|
5
3233828 O-ring |
3233828 |
US $8.17 |
||
|
6
|
6
3233831 Shaft-shift |
3233831 |
US $54.18 |
||
|
7
|
7
3234892 Seal-viton,triple lip |
3234892 |
US $45.17 |
||
|
8
|
8
3233832 Gear-sector,31t-cut to 11t |
3233832 |
US $34.46 |
||
|
9
|
9
3233711 Plug,oil fill |
3233711 |
US $20.69 |
||
|
10
|
10
3233524 Tube,vent |
3233524 |
US $6.11 |
||
|
11
|
11
3233018 Bearing |
3233018 |
US $29.54 |
||
|
12
|
12
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
13
|
13
3233889
Subasm-input shaft
|
3233889 |
— | ||
|
14
|
14
3233019 Bearing |
3233019 |
US $39.38 |
||
|
15
|
15
3233529 Pipe,knock |
3233529 |
US $8.52 |
||
|
16
|
16
3233865 Cover-main,lh |
3233865 |
US $304.31 |
||
|
17
|
17
3233866
Seal-viton,dual lip
|
3233866 |
— | ||
|
18
|
18
3233841 Drum-shift |
3233841 |
US $244.23 |
||
|
19
|
19
3234141 Sub asm-shift fork,w/pinIncl. 20; |
3234141 |
US $107.36 |
||
|
21
|
21
3233860 Rail-shift shaft,c version |
3233860 |
US $63.02 |
||
|
22
|
22
3233875
Dog-engagement,6 face
|
3233875 |
— | ||
|
23
|
23
3233849
Spring-wave
|
3233849 |
— | ||
|
24
|
24
3233850 Ring-retaining |
3233850 |
US $8.66 |
||
|
25
|
25
3233851 Washer |
3233851 |
US $8.66 |
||
|
26
|
26
3233852 Gear-33t,6 face engagement |
3233852 |
US $231.44 |
||
|
27
|
27
3233718 Bearing,ndl,split cage |
3233718 |
US $38.41 |
||
|
28
|
28
3233892 Shaft-reverse |
3233892 |
US $472.68 |
||
|
29
|
29
3233103 Bearing, needle |
3233103 |
US $31.52 |
||
|
30
|
30
3233893 Sprocket-24t,6 face |
3233893 |
US $147.72 |
||
|
31
|
31
3233894 Washer |
3233894 |
US $21.02 |
||
|
32
|
32
3233855 Washer |
3233855 |
US $8.66 |
||
|
33
|
33
3233856 Gear-30t,6 face |
3233856 |
US $252.11 |
||
|
34
|
34
3233857 Gear-37t,helical |
3233857 |
US $262.96 |
||
|
35
|
35
3233847
Gear-helical,47t
|
3233847 |
— | ||
|
36
|
36
3233608 Screw |
3233608 |
US $3.57 |
||
|
37
|
37
3233609 Cover,bearing |
3233609 |
US $27.56 |
||
|
38
|
38
3233106 Ring, snap |
3233106 |
US $3.75 |
||
|
39
|
39
3233357 Spacer |
3233357 |
US $3.26 |
||
|
40
|
40
3233607 Bearing,ball |
3233607 |
US $31.52 |
||
|
41
|
41
3234912 Subasm-grnd spirl bvl(411467)Incl. 44; |
3234912 |
US $552.42 |
||
|
42
|
42
3233619 Washer,thrust |
3233619 |
US $2.98 |
||
|
43
|
43
3233843 Sprocket-19t |
3233843 |
US $147.72 |
||
|
44
|
44
3234912 Subasm-grnd spirl bvl(411467)Incl. 41; |
3234912 |
US $552.42 |
||
|
45
|
45
3233911 Shaft-output,main,rear |
3233911 |
US $283.61 |
||
|
46
|
46
3233582 Button,thrust |
3233582 |
US $2.66 |
||
|
47
|
47
3233583 Shim ,450 x ,265 |
3233583 |
US $9.12 |
||
|
48
|
48
3233611 Shim |
3233611 |
US $18.10 |
||
|
49
|
49
3233845
Cover
|
3233845 |
— | ||
|
50
|
50
3234114 Scr-tapping hex washer hd 5/16 |
3234114 |
US $5.22 |
||
|
51
|
51
3233777 Plug-hex flange |
3233777 |
US $19.30 |
||
|
52
|
52
3233254 Washer,plug |
3233254 |
US $4.73 |
||
|
53
|
53
3233625 Shaft,front output |
3233625 |
US $142.80 |
||
|
54
|
54
3233408 Chain,silent,40p,11w |
3233408 |
US $102.39 |
||
|
55
|
55
3233844 Sprocket-22t |
3233844 |
US $102.36 |
||
|
56
|
56
3233552 Bushing,garlock |
3233552 |
US $21.49 |
||
|
57
|
57
3234046 Gearcase-main |
3234046 |
US $820.30 |
||
|
58
|
58
3233324 Washer |
3233324 |
US $3.26 |
||
|
59
|
59
3233840 O-ring |
3233840 |
US $8.17 |
||
|
60
|
60
3233839 Gear-sector,16t |
3233839 |
US $40.15 |
||
|
61
|
61
3233838 Disc-lockout |
3233838 |
US $47.23 |
||
|
62
|
62
3233837 Detent-star |
3233837 |
US $42.02 |
||
|
63
|
63
3233836 O-ring |
3233836 |
US $8.17 |
||
|
64
|
64
3233830 Spring-compression |
3233830 |
US $12.79 |
||
|
65
|
65
3233835
Switch-rotary,6 pin
|
3233835 |
— | ||
| replacement | |||||
|
65
|
65
3236115 SWITCH-ROTARY,6 PIN |
3236115 |
US $130.52 |
||
|
66
|
66
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
67
|
67
3233825 Bellcrank-hlnrp |
3233825 |
US $12.20 |
||
|
68
|
68
1341465
Asm., gearcase
|
1341465 |
— | ||
