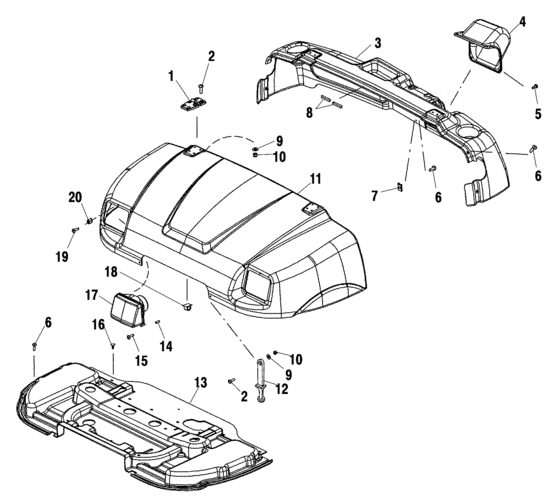

Hood (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5437902 Asm-hinge |
5437902 |
US $7.09 |
||
|
2
|
2
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
3
|
3
5434443-195 Dash-ranger 6x6,eb green |
5434443-195 |
US $841 |
||
|
4
|
4
5434288-195
Cover, steering column
|
5434288-195 |
— | ||
|
5
|
5
7512026
Screw
|
7512026 |
— | ||
|
6
|
6
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
7
|
7
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
8
|
8
8360060-10
Edge trim-3/8 bulb,10 cm
|
8360060-10 |
— | ||
|
9
|
9
7555935 Washer |
7555935 |
US $3.26 |
||
|
10
|
10
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
11
|
11
5434279-195
Hood-ranger,eb green
|
5434279-195 |
— | ||
|
12
|
12
5410370 Strap, hood latch |
5410370 |
US $18.32 |
||
|
13
|
13
5434535
Hood, liner
|
5434535 |
— | ||
|
14
|
14
4032094 Spring,adj,(2,5 in) |
4032094 |
US $1.28 |
||
|
15
|
15
4032042 Screw,adjust,(atv) |
4032042 |
US $3.94 |
||
|
16
|
16
7670090 Clip,plastic dart,nylon(10) |
7670090 |
US $39.40 |
||
|
17
|
17
2410275
Headlight asm,rngr,series 10/11
|
2410275 |
— | ||
|
17
|
17
4010681
Bulb, headlight
|
4010681 |
— | ||
|
18
|
18
7670134 Clip-wire,adhesive back,1/2" |
7670134 |
US $7.68 |
||
|
19
|
19
4032003
Screw, adj.
|
4032003 |
— | ||
|
20
|
20
5412148 Grommet-3/16x9/16x3/8 |
5412148 |
US $3.26 |
