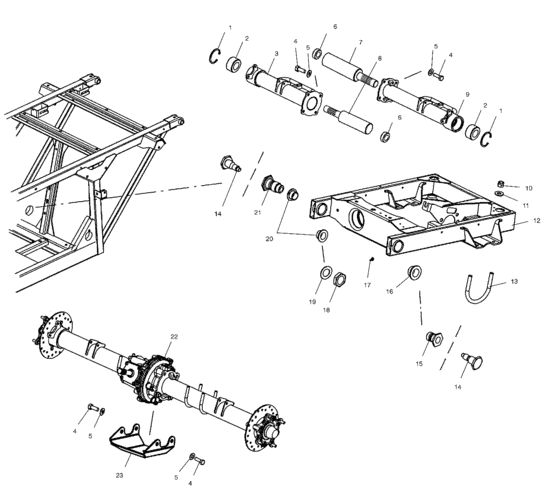

Swing arm (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
2
|
2
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
2
|
2
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
3
|
3
1013293-067 Tube axle,rh,blk |
1013293-067 |
US $732.66 |
||
|
4
|
4
7517585 Bolt-1/2-13x1 1/4 hxhd gr5-z |
7517585 |
US $3.26 |
||
|
5
|
5
7553201 Washer,split lock |
7553201 |
US $2.45 |
||
|
6
|
6
5411553 Seal,cvr,inner |
5411553 |
US $13.79 |
||
|
7
|
7
1380163
Axle, lh
|
1380163 |
— | ||
|
8
|
8
1380164
Axle, rh
|
1380164 |
— | ||
|
9
|
9
1013292-067 Tube axle,lh,blk |
1013292-067 |
US $549.48 |
||
|
10
|
10
7542525 Nut, nylok |
7542525 |
US $2.45 |
||
|
11
|
11
7555984 Washer,flat |
7555984 |
US $3.26 |
||
|
12
|
12
1013295-067
Swing arm,blk
|
1013295-067 |
— | ||
|
13
|
13
5245127 U-bolt,rndbnd,7/16x3,62x3,12x1 |
5245127 |
US $41.11 |
||
|
14
|
14
5131697 Bolt,swingarm pivot |
5131697 |
US $44.29 |
||
|
15
|
15
5131695
Bushing, swing arm pivot, lh
|
5131695 |
— | ||
|
16
|
16
5434545 Bushing-lh,hybrid,blk |
5434545 |
US $9.85 |
||
|
17
|
17
7080424 Fitting, lubrication |
7080424 |
US $4.59 |
||
|
18
|
18
7547082 Nut,hex,jam |
7547082 |
US $40.15 |
||
|
19
|
19
7556035 Washer,flat |
7556035 |
US $9.85 |
||
|
20
|
20
5433412 Bushing, swing arm, rh |
5433412 |
US $10.83 |
||
|
21
|
21
5131696
Bushing, swing arm pivot, rh
|
5131696 |
— | ||
|
23
|
23
5245665-067 Plate-differential,skid,blk |
5245665-067 |
US $65.99 |
||
