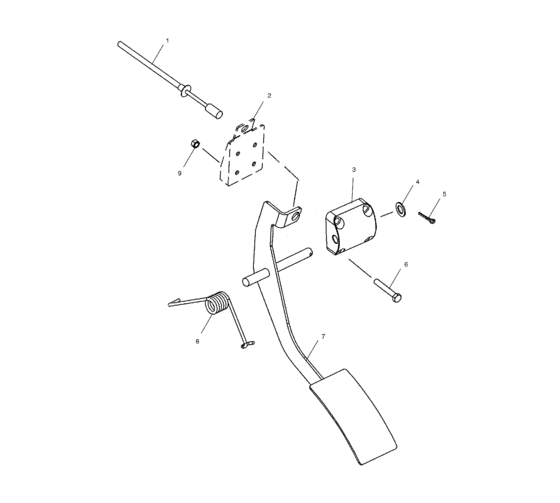

Throttle (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080938 Cable-throttle,rgr/pps |
7080938 |
US $110.43 |
||
|
3
|
3
5434327 Block-pivot,throttle |
5434327 |
US $14.28 |
||
|
4
|
4
7555954 Washer |
7555954 |
US $2.45 |
||
|
5
|
5
7661011 Pin, cotter |
7661011 |
US $7.88 |
||
|
6
|
6
7515102 Screw |
7515102 |
US $3.94 |
||
|
7
|
7
1013557-067
Throttle,blk
|
1013557-067 |
— | ||
|
8
|
8
7042004 Spring-accelerator |
7042004 |
US $14.18 |
||
|
9
|
9
7547069 Nutsert,hex |
7547069 |
US $3.26 |
