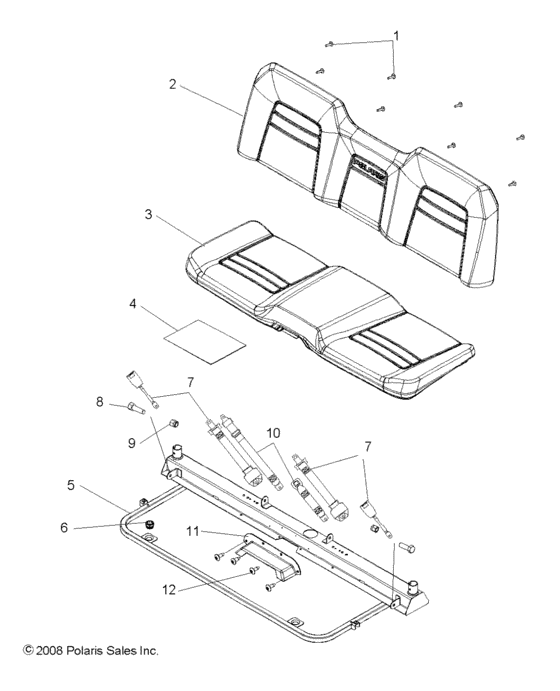

Body, seat and base (R09HH68/HY68 ALL OPTIONS) Diagram Polaris RANGER 700 4X4 EFI
- Model code
- R09HH68/HY68
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
2
|
2
2684375 Asm-seat,rngr,back,blk,suede mAV; |
2684375 |
US $716.91 |
||
|
2
|
2
2684275
Asm-seat,rngr,back,browning
AL;AS; |
2684275 |
— | ||
|
2
|
2
2684176-070
Asm-seat,rngr,back,blk
AG;AH;AR; |
2684176-070 |
— | ||
|
2
|
2
2684263
Asm-seat,rngr,back,blk/s,red
AM;AZ; |
2684263 |
— | ||
|
2
|
2
2684255 Asm-seat,rngr,back,blk/d,steelAN; |
2684255 |
US $617.44 |
||
|
2
|
2
2684269 Asm-seat,rngr,back,blk/slvrAB; |
2684269 |
US $584.94 |
||
|
3
|
3
2684266
Asm-seat,rngr,btm,blk/s,red
AM;AZ; |
2684266 |
— | ||
|
3
|
3
2684272 Asm-seat,rngr,btm,blk/slvrAB; |
2684272 |
US $693.28 |
||
|
3
|
3
2684278
Asm-seat,rngr,btm,browning
AL;AS; |
2684278 |
— | ||
|
3
|
3
2684177-070
Asm-seat,rngr,btm,blk
AG;AH;AR; |
2684177-070 |
— | ||
|
3
|
3
2684256 Asm-seat,rngr,btm,blk/d,steelAN; |
2684256 |
US $693.28 |
||
|
3
|
3
2684377
Asm-seat,rngr,btm,blk/suede m,
AV; |
2684377 |
— | ||
|
3
|
3
2204383 Kit-seat mntReplaces Seat Pin; |
2204383 |
US $21.96 |
||
|
4
|
4
5812959 Foil-seat |
5812959 |
US $20.28 |
||
|
5
|
5
1016228-067 Weld-cab/seat base,blk |
1016228-067 |
US $378.14 |
||
|
6
|
6
5412507 Grommet |
5412507 |
US $9.19 |
||
|
7
|
7
2632421 Seat belt,asm, |
2632421 |
US $214.18 |
||
|
8
|
8
7512539 Bolt |
7512539 |
US $3.26 |
||
|
9
|
9
7542525 Nut, nylok |
7542525 |
US $2.45 |
||
|
10
|
10
2632422
Seat,belt,ctr,asm,r
|
2632422 |
— | ||
|
11
|
11
5437819-070 Cover-seat panel,lower,blk |
5437819-070 |
US $4.94 |
||
|
12
|
12
7512084 Screw(10) |
7512084 |
US $1.49 |
