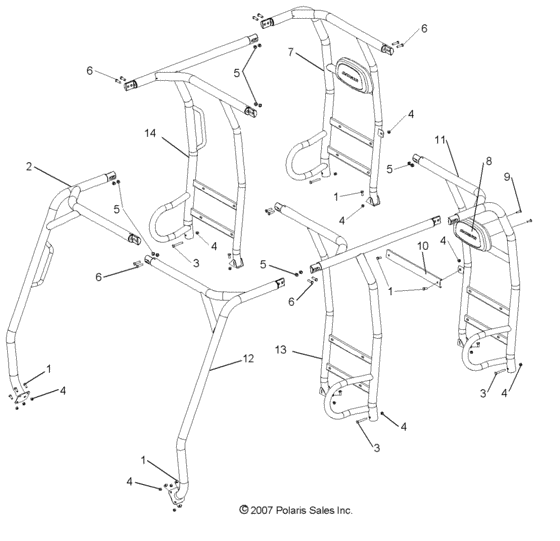

Chassis, cab frame (R08WH68AG/AH/AK/AR) Diagram Polaris RANGER 700 4X4 EFI CREW
- Model code
- R08WH68AG/AH/AK/AR
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515321 Bolt |
7515321 |
US $1.89 |
||
|
2
|
2
1015906-418 Weld-cab frame,front,rh,fbw |
1015906-418 |
US $596.16 |
||
|
3
|
3
7515339 Bolt |
7515339 |
US $3.26 |
||
|
4
|
4
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
5
|
5
7542451
Nut, nylok(10) *
|
7542451 |
— | ||
|
6
|
6
7517935 Scr-3/8,16x1 1/4 hxsoc cs zy3 |
7517935 |
US $3.26 |
||
|
7
|
7
1015908-418
Weld-cab frame,rr,rh,fbw
|
1015908-418 |
— | ||
|
8
|
8
5434879-070 Headrest-black |
5434879-070 |
US $101.45 |
||
|
9
|
9
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
10
|
10
5248164-418 Brkt-cab frame,center,crossfbw |
5248164-418 |
US $25.43 |
||
|
11
|
11
1015907-418 Weld-cab frame,rr,lh,fbw |
1015907-418 |
US $849.36 |
||
|
12
|
12
1015905-418 Weld-cab frame,front,lh,fbw |
1015905-418 |
US $795.69 |
||
|
13
|
13
1016038-418 Weld-cab frm,rr,lh,fbw |
1016038-418 |
US $738.57 |
||
|
14
|
14
1016039-418 Weld-cab frm,rr,rh,crew,fbw |
1016039-418 |
US $642.55 |
