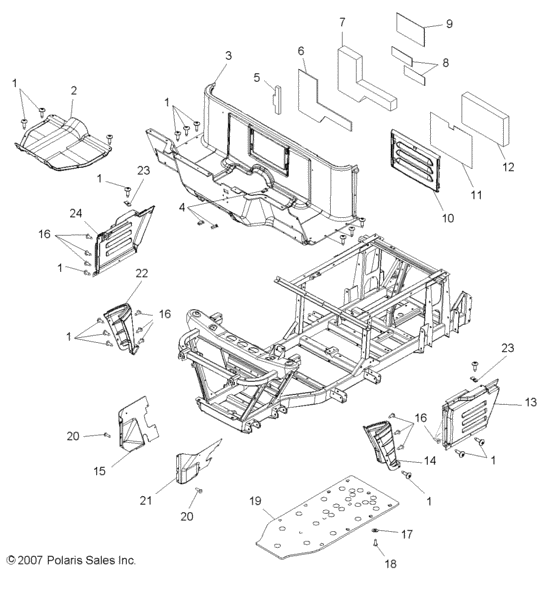

Body, floor and fenders (R08RF68AD/AF/AZ) Diagram Polaris RANGER 700 6X6 EFI
- Model code
- R08RF68AD/AF/AZ
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
2
|
2
5436402 Cover-drive shaft,floor |
5436402 |
US $51.21 |
||
|
3
|
3
2633436
Asm., main floor ]
Incl. 6; |
2633436 |
— | ||
|
4
|
4
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
||
|
5
|
5
5812954 Foam-foil,floor |
5812954 |
US $4.34 |
||
|
6
|
6
5812695 Foil-heat shield,floor |
5812695 |
US $9.15 |
||
|
7
|
7
5812842 Foam-foil,floor |
5812842 |
US $19.30 |
||
|
8
|
8
5812955 Foil_floor, horizontal |
5812955 |
US $4.34 |
||
|
9
|
9
5812956 Foil_floor, vertical |
5812956 |
US $3.64 |
||
|
10
|
10
2632972
Asm., floor, dog house cover
Incl. 11; |
2632972 |
— | ||
|
10
|
10
5435645
Floor, doghouse cover
|
5435645 |
— | ||
|
11
|
11
5812694
Foil-heat shield
|
5812694 |
— | ||
|
12
|
12
5812841 Foam-foil, access panel |
5812841 |
US $9.15 |
||
|
13
|
13
5435929-070 Fender-rear,6x6,lh,blk |
5435929-070 |
US $324.57 |
||
|
14
|
14
5435886-070 Fender-front,lh,blk |
5435886-070 |
US $86.68 |
||
|
15
|
15
5436535 Panel-wheel well,rh |
5436535 |
US $92.35 |
||
|
16
|
16
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
17
|
17
7556065 Washer |
7556065 |
US $6.69 |
||
|
18
|
18
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
19
|
19
5812909 Plate-skid,6x6 |
5812909 |
US $270.20 |
||
|
20
|
20
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
21
|
21
5436534 Panel-wheel well,lh |
5436534 |
US $162.26 |
||
|
22
|
22
5435887-070 Fender-front,rh,blk |
5435887-070 |
US $86.68 |
||
|
23
|
23
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
24
|
24
5435930-070
Fender-rear,6x6,rh,blk
|
5435930-070 |
— |
