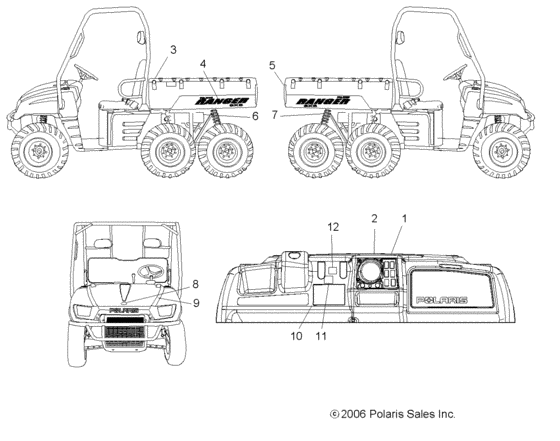

Decals (R07RF68AD/AF) Diagram Polaris RANGER 700 EFI 6X6
- Model code
- R07RF68AD/AF
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7173778
Decal, warning, cab frame/seat belt
|
7173778 |
— | ||
|
2
|
2
5248735
Plate-hwsr,ranger
|
5248735 |
— | ||
|
3
|
3
7173777
Decal, warn, cont/pass/tire pressure
|
7173777 |
— | ||
|
4
|
4
7172889
Decal-box,ranger 6x6,lh
|
7172889 |
— | ||
|
4
|
4
7172890
Decal-box,ranger 6x6,rh
|
7172890 |
— | ||
|
5
|
5
7173125
Decal-polaris,tailgate
|
7173125 |
— | ||
|
6
|
6
7079925 Decal-reflect,2,88,red |
7079925 |
US $3.64 |
||
|
7
|
7
7173403
Decal-hitch,1750 lbs, max
|
7173403 |
— | ||
|
8
|
8
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
9
|
9
7173570
Decal-700 twin efi,hood,rh
|
7173570 |
— | ||
|
9
|
9
7173569
Decal-700 twin efi,hood,lh
|
7173569 |
— | ||
|
10
|
10
7172675
Decal, warning, discretionary
|
7172675 |
— | ||
|
11
|
11
7170532
Decal-"apply brake",green
AF; |
7170532 |
— | ||
|
11
|
11
7170739 Decal-"apply brake to start"AD; |
7170739 |
US $9.15 |
||
|
12
|
12
7172674 Decal, caution, "shift at idle" |
7172674 |
US $3.36 |
