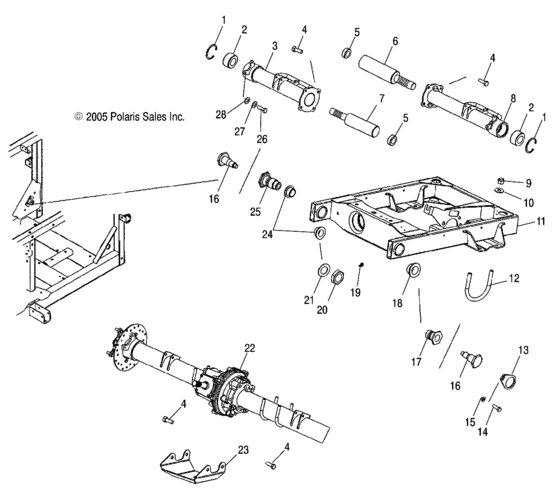

Swing arm (R07RF68AD/AF) Diagram Polaris RANGER 700 EFI 6X6

Model code
R07RF68AD/AF
Year
2007
Sales region
General

Difficulties in parts search?

Parts list
Swing arm

Difficulties in parts search?

Swing arm
Description OEM Part # Price
1
1

7710440

Ring,retaining

7710440

US $12.79

2
2
3585502
Bearing

3585502

replacement
2
2

3514635

Bearing-wheel,40x74x40mm

Analog Koyo DAC4074W12CS47

3514635

US $59.06

3
3

1015217-067

Weld-axle tube,rh,ranger,blk

1015217-067

US $426

4
4

7517585

Bolt-1/2-13x1 1/4 hxhd gr5-z

7517585

US $3.26

5
5

5410772

O-ring (10)

5410772

US $7.91

6
6
1380213
Asm-driveshaft,axle,lh

1380213

7
7
1380214
Asm-driveshaft,axle,rh

1380214

8
8
1015216-067
Weld-axle tube,lh,ranger,blk

1015216-067

9
9

7542525

Nut, nylok

7542525

US $2.45

10
10

7555984

Washer,flat

7555984

US $3.26

11
11
1014992-067
Weld-swing arm,blk

1014992-067

12
12

5245127

U-bolt,rndbnd,7/16x3,62x3,12x1

5245127

US $41.11

13
13
5246229
Bracket, bolt lock

5246229

14
14

7512490

Screw

7512490

US $3.75

15
15

7547180

Nut-flanged,3/8-16 nylon-z (10)

7547180

US $3.20

16
16

5131697

Bolt,swingarm pivot

5131697

US $44.29

17
17

5133166

Bushing-pivot,lh

5133166

US $31.01

18
18

5434545

Bushing-lh,hybrid,blk

5434545

US $9.85

19
19

7080424

Fitting, lubrication

7080424

US $4.59

20
20

7547082

Nut,hex,jam

7547082

US $40.15

21
21

7556035

Washer,flat

7556035

US $9.85

23
23

5245665-067

Plate-differential,skid,blk

5245665-067

US $65.99

24
24

5434546

Bushing-rh,hybrid,blk

5434546

US $10.83

25
25

5133167

Bushing-pivot,rh

5133167

US $44.29

26
26

7517445

Screw

Rear Caliper Attach;

7517445

US $3.75

27
27

7552901

Washer,spring lock(10)

Rear Caliper Attach;

7552901

US $39.40

28
28

7558402

Washer,flat(10)

Rear Caliper Attach;

7558402

US $18.70

US $18.70
