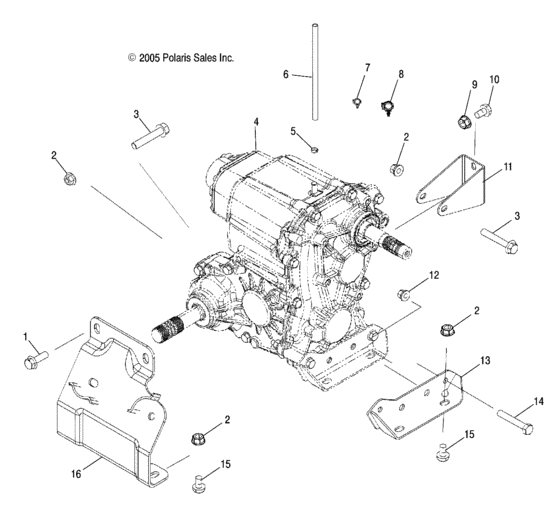

Transmission mounting (R07RF68AD/AF) Diagram Polaris RANGER 700 EFI 6X6
- Model code
- R07RF68AD/AF
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517632 Screw |
7517632 |
US $4.24 |
||
|
2
|
2
7547263 Nut-3/8-24 nylok |
7547263 |
US $2.63 |
||
|
3
|
3
7518415 Bolt-3/8-24x23/4,hex flange,65 |
7518415 |
US $2.70 |
||
|
4
|
4
1332307
Asm., main gearcase
|
1332307 |
— | ||
|
5
|
5
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
6
|
6
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
7
|
7
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
8
|
8
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
9
|
9
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
10
|
10
7512377 Bolt,carriage |
7512377 |
US $5.25 |
||
|
11
|
11
5246084-067 Brkt-tranny mnt,rear,blk |
5246084-067 |
US $9.15 |
||
|
12
|
12
3234043 Nut |
3234043 |
US $3.75 |
||
|
13
|
13
3234044 Bracket |
3234044 |
US $24.43 |
||
|
14
|
14
3234042 Screw |
3234042 |
US $4.73 |
||
|
15
|
15
7517289 Screw |
7517289 |
US $3.94 |
||
|
16
|
16
1015065-067 Eng/trans mnt,blk |
1015065-067 |
US $53.74 |
