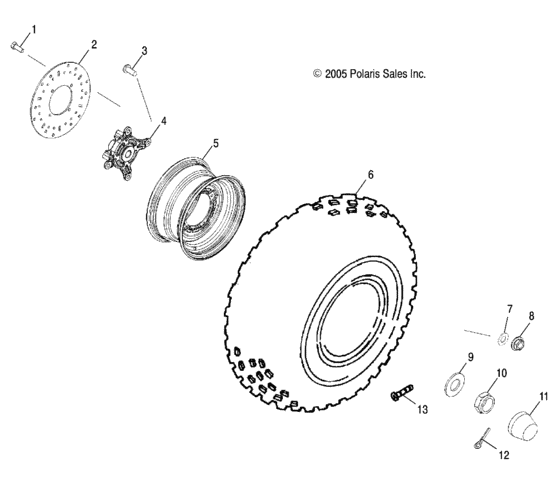

Wheel, front (R07RF68AD/AF) Diagram Polaris RANGER 700 EFI 6X6
- Model code
- R07RF68AD/AF
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512325 Bolt |
7512325 |
US $5.25 |
||
|
2
|
2
5244314 Disc,brake,front |
5244314 |
US $88.60 |
||
|
3
|
3
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
4
|
4
5135207 Hub-wheel,4wd,mach |
5135207 |
US $99.24 |
||
|
5
|
5
1520796-067 Rim,front,12x6,10ga,blk |
1520796-067 |
US $128.89 |
||
|
6
|
6
5411397
Tire,f, 25x10-12__uu0
|
5411397 |
— | ||
| replacement | |||||
|
6
|
6
5413961 Tire-25x10-12,nhs,489 |
5413961 |
US $263.69 |
||
|
7
|
7
7556242 Washer-,385x,88x,075,fl-y thr |
7556242 |
US $3.94 |
||
|
8
|
8
7542459 Nut, flanged(10) |
7542459 |
US $65.60 |
||
|
9
|
9
7556004 Washer |
7556004 |
US $5.22 |
||
|
10
|
10
7542810 Nut, slotted |
7542810 |
US $3.94 |
||
|
11
|
11
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
12
|
12
7661402 Pin, cotter |
7661402 |
US $2.45 |
||
|
13
|
13
1525017 Valve, rim |
1525017 |
US $6.56 |
||
