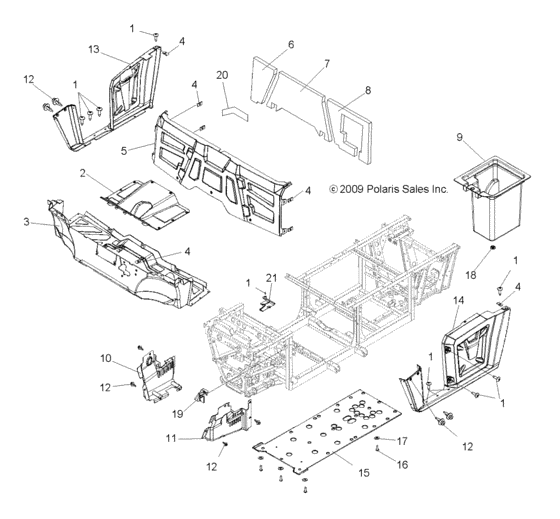

Body, floor and fenders (R10TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
2
|
2
5437657-070 Cover-drive shaft,floor,blk |
5437657-070 |
US $67.34 |
||
|
3
|
3
2633828-070 Asm-floor main,ranger,blkIncl. 4, Qty 9; |
2633828-070 |
US $639.10 |
||
|
4
|
4
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
5
|
5
5437571-070
Floor-rear,ranger,blk
|
5437571-070 |
— | ||
|
6
|
6
5813399 Foam-floor back,rh |
5813399 |
US $24.43 |
||
|
7
|
7
5813350 Foam-floor back |
5813350 |
US $112.28 |
||
|
8
|
8
5813398 Foam-floor back,lh |
5813398 |
US $56.14 |
||
|
9
|
9
5437629-070 Storage box,blk |
5437629-070 |
US $96.51 |
||
|
10
|
10
5437691-070
Panel-wheel well,rh,blk
|
5437691-070 |
— | ||
|
11
|
11
5437690-070 Panel-wheel well,lh,blk |
5437690-070 |
US $29.54 |
||
|
12
|
12
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
13
|
13
5437567-070 Fender-rear,w/rocker,rh,blk |
5437567-070 |
US $168.40 |
||
|
14
|
14
5437566-070 Fender-rear,w/rocker,lh,blk |
5437566-070 |
US $168.40 |
||
|
15
|
15
5438572-070 Plate-skid,blk |
5438572-070 |
US $125.55 |
||
|
16
|
16
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
17
|
17
7556065 Washer |
7556065 |
US $6.69 |
||
|
18
|
18
5412981 Plug-compartment |
5412981 |
US $3.94 |
||
|
19
|
19
5438367-070 Deflector-heat,lower,blk |
5438367-070 |
US $9.78 |
||
|
20
|
20
5813563 Foil, floor |
5813563 |
US $1.66 |
||
|
21
|
21
5438368-070 Deflector-heat,upper,blk |
5438368-070 |
US $7.32 |
