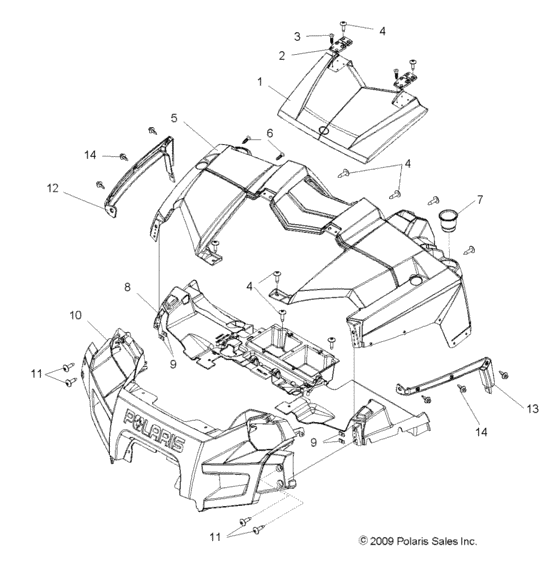

Body, hood and front fascia (R10TH76/TY76 ALL OPTIONS) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5438256-342 Hood-center access,rngr,s,redAR; |
5438256-342 |
US $152.65 |
||
|
1
|
1
5438292-538 Hood-ctr access,painted,p,whtAW; |
5438292-538 |
US $503.20 |
||
|
1
|
1
5438292-576 Hood-ctr access,painted,o,blueAY; |
5438292-576 |
US $454.95 |
||
|
1
|
1
5438292-520 Hood-ctr access,pntd,sunsetredAZ; |
5438292-520 |
US $516.99 |
||
|
1
|
1
5438293-455
Hood-ctr access,rngr,dip,nbu
AH;AL; |
5438293-455 |
— | ||
|
1
|
1
5438256-498 Hood-ctr access,rngr,sgebrsh mTH76AG;AN;TY76AG; |
5438256-498 |
US $152.65 |
||
|
1
|
1
5438293-587 Hood-ctraccess,rngr,dip,ppcamoAB; |
5438293-587 |
US $799.63 |
||
|
1
|
1
5438292-402 Hood-ctr access,pntd,t.slvAJ; |
5438292-402 |
US $489.41 |
||
|
1
|
1
5438292-493 Hood-ctr access,painted,n.s.o.AO; |
5438292-493 |
US $315.14 |
||
|
2
|
2
5437902 Asm-hinge |
5437902 |
US $7.09 |
||
|
3
|
3
7518158 Scr-#14x1 hi/lo-ph-pn trx-m |
7518158 |
US $3.26 |
||
|
4
|
4
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
5
|
5
5437850-493 Hood-w/dash,painted,n.s.o.AO; |
5437850-493 |
US $1,282.17 |
||
|
5
|
5
5437573-342 Hood-w/dash,rngr,solar redAR; |
5437573-342 |
US $1,164.98 |
||
|
5
|
5
5437850-538 Hood-w/dash,painted,p, whiteAW; |
5437850-538 |
US $1,323.54 |
||
|
5
|
5
5437850-576 Hood-w/dash,painted,ocean blueAY; |
5437850-576 |
US $1,227.03 |
||
|
5
|
5
5437850-520 Hood-w/dash,painted,sunset redAZ; |
5437850-520 |
US $1,364.90 |
||
|
5
|
5
5437875-455 Hood-w/dash,rngr,dip,nbuAH;AL; |
5437875-455 |
US $1,137.40 |
||
|
5
|
5
5437850-402 Hood-w/dash,painted,t,silverAJ; |
5437850-402 |
US $1,364.90 |
||
|
5
|
5
5437573-498 Hood-w/dash,rngr,sagebrsh met,TH76AG;AN;TY76AG; |
5437573-498 |
US $799.63 |
||
|
5
|
5
5437875-587 Hood-w/dash,rngr,dip,ppcamoAB; |
5437875-587 |
US $1,364.90 |
||
|
6
|
6
7512026
Screw
|
7512026 |
— | ||
|
7
|
7
5436836
Holder-cup
|
5436836 |
— | ||
|
8
|
8
5437572-070 Liner-hood,blk |
5437572-070 |
US $182.19 |
||
|
9
|
9
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
10
|
10
5437575-070 Fascia-front,ranger,blk |
5437575-070 |
US $162.51 |
||
|
11
|
11
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
12
|
12
5437569-070 Fender-front,w/flare,rh,blk |
5437569-070 |
US $18.20 |
||
|
13
|
13
5437568-070 Fender-front,w/flare,lh,blk |
5437568-070 |
US $18.20 |
||
|
14
|
14
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
