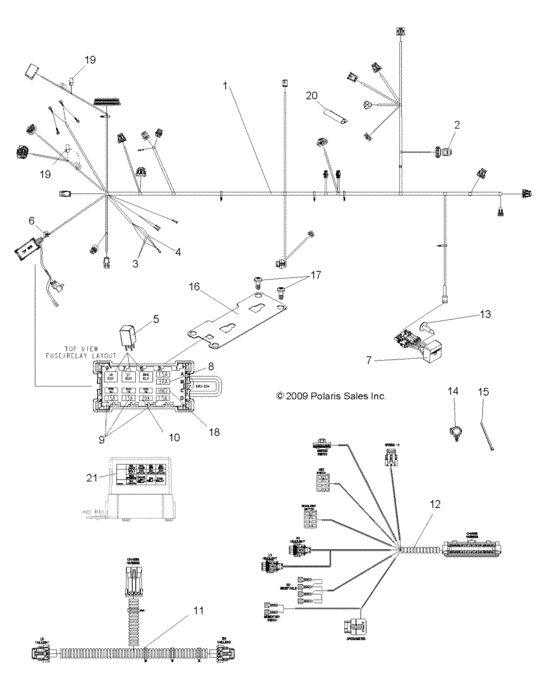

Electrical, wire harnesses (R10TY76AG/AN/AZ) Diagram Polaris RANGER 800 4X4 EFI
- Model code
- R10TH76/TY76
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2878077 Kit-harness,cps |
2878077 |
US $131.86 |
||
|
1
|
1
2411394 Harness-chassis,4x4,800,hdIncl. 2-6,8-10,18,19,21, All Kits; |
2411394 |
US $999.53 |
||
|
1
|
1
2875543 Kit-harness,engine temp |
2875543 |
US $97.51 |
||
|
1
|
1
2875542
Kit-harness,t-bap
|
2875542 |
— | ||
| replacement | |||||
|
1
|
1
2878494 Kit-harness,t-bap,t-map |
2878494 |
US $125.25 |
||
|
1
|
1
2203801 Kit-harness,tps,atv/rgr,twins |
2203801 |
US $103.41 |
||
|
2
|
2
4010924
Module-resistor
|
4010924 |
— | ||
|
3
|
3
2202607 Kit-fusible link,0,8 mm |
2202607 |
US $35.26 |
||
|
4
|
4
2202670 Kit-fusible link,1,0mm |
2202670 |
US $35.26 |
||
|
5
|
5
4011283 Relay-spst,series 303,sealed |
4011283 |
US $24.61 |
||
|
6
|
6
2411086 Breaker-circuit,15 amp,sealed |
2411086 |
US $31.43 |
||
|
7
|
7
4012193
Relay, solid state, 9 amp
|
4012193 |
— | ||
|
8
|
8
2434015
Fuse,main,30 amp,(10)
|
2434015 |
— | ||
|
9
|
9
4010859 Fuse-15amp,mini blade |
4010859 |
US $2.28 |
||
|
10
|
10
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
11
|
11
2411387
Harness,box,ranger
|
2411387 |
— | ||
|
12
|
12
2411386 Harness-dash,4x4,800 |
2411386 |
US $368.08 |
||
|
13
|
13
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
14
|
14
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
5251956 Plate-fuse,mnt,y |
5251956 |
US $24.43 |
||
|
17
|
17
7512026
Screw
|
7512026 |
— | ||
|
18
|
18
4012440 Resistor-120 ohm 2,8mm,ato |
4012440 |
US $66.55 |
||
|
19
|
19
4011998 Relay-micro,spdt,35/20a,sld,12 |
4011998 |
US $27.37 |
||
|
20
|
20
5813570 Foil, harness |
5813570 |
US $24.43 |
||
|
21
|
21
7175785
Decal, fuse/relay block
|
7175785 |
— | ||
